6STAR Carbon Fiber Servo Vertical Rudder Mount Rudder Tray Set for 20-50CC Airplane

Availability: In stock, usually dispatched in 1 business day

  • Price:$30.87
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $0.00 $0.00 $0.00 $0.00 Contact US
Quantity:

6STAR Carbon Fiber Servo Vertical Rudder Mount Rudder Tray Set for 20-50CC Airplane

Mounting size:

- 2 L1=121mm
- 2 L2=38mm
- 2 L3=42.7mm
- 2 L4=22.3mm
- 2 L5=9.3mm
- 2 L6=49.8mm

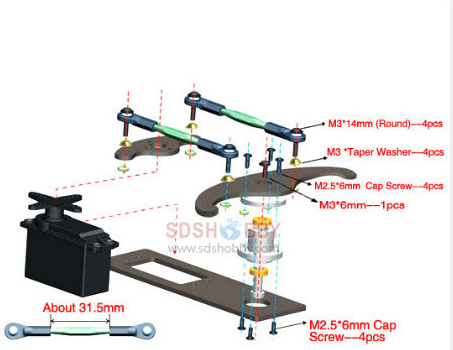

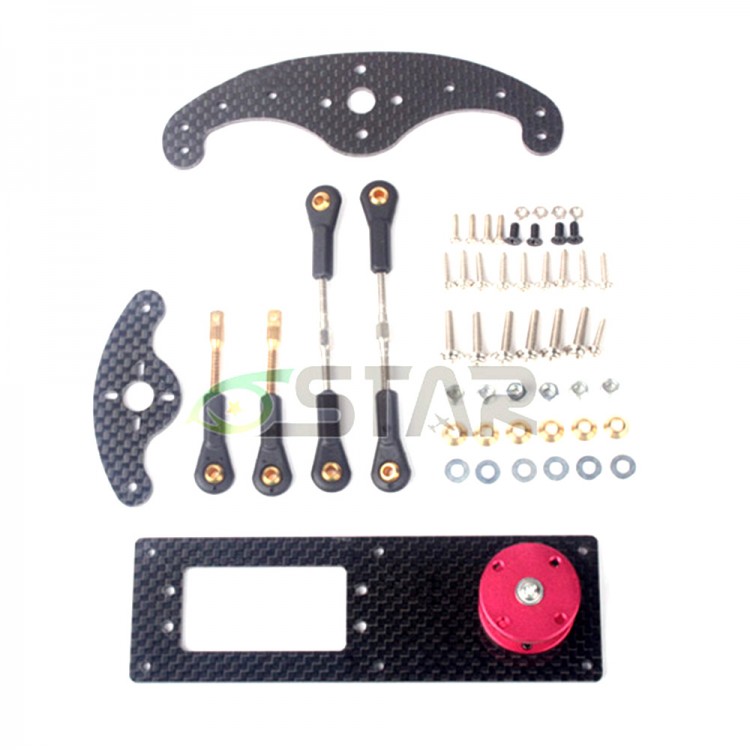

Package Contents:

- Rudder Tray: L121*38mm, 1pcs
- Carbon Fiber Servo Arm: L60*24mm, 1pcs; L112*33mm, 1pcs
- Aluminum Bearing Mount: D25*H18mm
- Aluminum Stick: D5*H16mm
- Aluminum Round Servo Plate: D25*3mm
- Bearing: D11mm
- Stainless Steel Push Rod: L38mm
- Standard Bearing Head: D3*28mm
- Connecting Rod: L23mm
- Flat Screw: K2.5*6mm (black)
- Set Screw: PWA2.3*12mm
- Nut: M2
- Machine Screw A# with Wash: PM3*6mm
- Machine Screw: PM2*8mm
- Nylon Nut: M3
- Washer: D7*d3mm
- Taper Washer: D3mm (copper)
- Machine Screw with Wash: PM3*14mm
