Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $352.97 | $345.76 | $334.96 | $320.55 | Contact US |

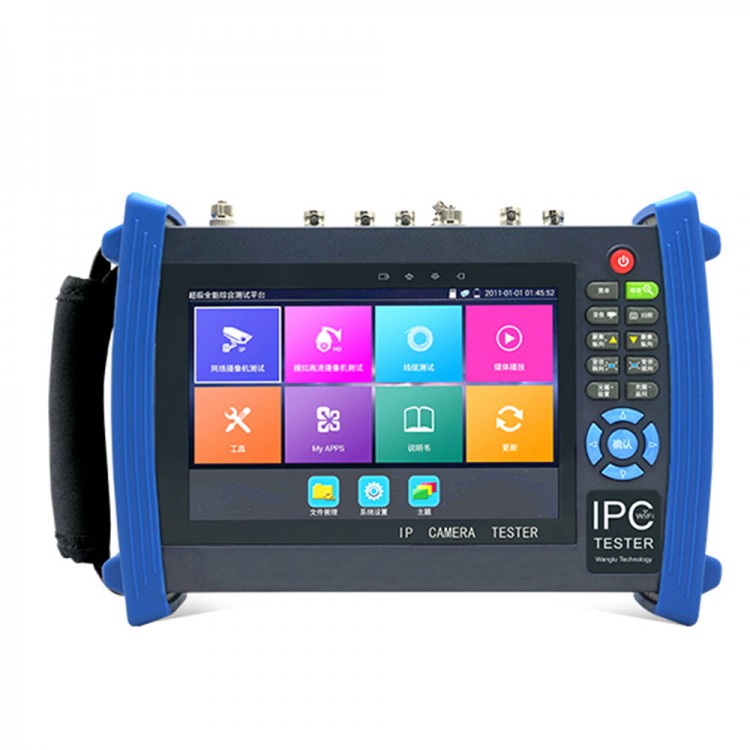

7" HD IP Camera CCTV Tester PTZ Control 1920x1200 Android System H.265 4K Video HDMI Input Support TVI3.0 IPC8600 Plus
Main features:
- 7" 1920*1200 IPS HD touch screen
- Support H.265 decoding
- HDMI output, resolution 1920*1080P
- Test image of main stream, the highest resolution 4K under camera with the H.265/H.264 coding mode
- Support HDMI HD digital signal input, maximum resolution is 1080P
- Test IP camera and analog camera at the same time
- Support TVI3.0 (optional function
- Shortcut drop-down menu
- Automatic scaning IP of camera by one key and to the ONVIF
- Custom the unction icon, desktop and application interface background
- Custom desktop shortcut keys
- Built in wireless WIFI function,support WiFi hotspot,share the net
- Support CVBS test
- Support ONVIFcamera ,and Support DAHUA,Haikang,ACTi,Samsung , etc.
- Image can rotate 180 degrees
- PTZ controller ,Photograph, Video record, Record playback
- Support 4K HD videos and MP4 playing
- Video level test function
- POE voltage measurement, PING test ,IP address scan, port flashing etc
- PoE DC48V output, maximum power 24W
- 12V 2A DC output
- 5V 2A DC power output
- Audio input and output, support camera audio test
- Support upgrade
- Lithium polymer battery as power supply, working up to 16h
Specifications: | |
Model | IPC-8600 PLUS |
Display | 7 inch Capacitive touch screen, resolution 1920*1200 |
Network port | 10/100M auto adapt,RJ45 |
WIFI | Built in WIFI,speeds150M,receiving wireless camera image |
IP camera | ONVIF (with PTZ control),ACTi,Dahua IPC-HFW2100P,Hikvision,DS-2CD864-E13,Samsung SNZ-5200,Tiandy TD-NC9200S2,Kodak IPC120L,Honeywell HICC-2300T,Aipu-waton IP5000-BC-13MP/IRS06-13MP,fine-Tida IPC,FSJ BY-1080Q,WEISKY IPC camera etc. |
H.265 main stream test | New hardware decoding,support H.265 main stream camera image, maximum resolution 4K |
IP searching | Search camera IP address in the whole network segment |
ONVIF | Automatic login in, a key to activate the Haikang camera and modify the IP parameters to generate test report etc. |
Haikang test tool | A key to activate the Haikang,image test,modify username, password,parameters and IP etc. |
Dahua image test tool | Dahua image test,modify username, IP username and password,etc. |
CVBS video signal test | 1CH Video IN BNC input, 1CH Video OUT BNC output, support PAL/NTSC |
CVBS video signal level test | Test peak value of the video signal, synchronization level, burst level. |
Video image zooming | Support analog video image zooming, IP network camera image zooming and moving |
Video recording, photo browsing, video playback | Screen screenshots, videos, support Chinese named save, photo browsing, video playback operation |
HDMI input | 1CH HDMI input, support 720x480p /720x576p /1280x720p /1920x1080p /1024x768p/1280x1024p /1280x900p /1440x900p |
HDMI output | 1CH HDMI output, resolution 1920*1080P. |
PoE power output | 48V PoE power output, maximum power 24W |
12V/2Apower output | Output DC12V/2A power for camera |
5V power output | 5V 2A power output,as a Power bank |
Audio test | 1 channel audio signal input,test whether sound normal,1 channel audio signal, to connect headphone |
PTZ control | Support RS232/RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic,Lilin, Yaan, etc |
Color bar generator | Send PAL/NTSC color bar video signal through video OUT port (blue and black color ) |
UTP Cable tester | Test UTP cable connection status and display on the screen. Read the number on the screen |
Color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green,blue,white and black color ) |
UTP Cable tester | Test UTP cable connection status and display on the screen. Read the number on the screen |
Collect protocol code |
Built in serial port tool, can receive, display control device that send the RS485/RS232 protocol code data, can also send sixteen code |
Network test | IP address scan, link test, Ping test,Quickly search the connection IP camera and other device's IP address |
Cable scan | Search the cable by the audio signal |
PoE/PSE test | Display power supply voltage and cable connection status |
External power supply | DC 12V 2A |
Battery | Built-in 7.4V Lithium polymer battery,6500mAh |
Rechargeable | After charging 7-8 hours, normal working time 16 hours |
Parameter | |
Operation setting | Capacitive touch screen, OSD menu,English |
Auto off | 5-30 (mins) |
General | |
Working Temperature | -10~+50 |
Working Humidity | 30%-90% |
Dimension | 231mmx172mmx52mm |
Weight | 1.26Kg |
