709AD 220V Pulse Spot Welder Battery Welding Soldering Machine 3in1 for 18650 with 71B Welding Pen

Availability: In stock, usually dispatched in 1 business day

  • Price:$297.72
  • Price in reward points: 2977 Reward Points: 30
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $291.77 $285.81 $276.88 $264.97 Contact US
Quantity:

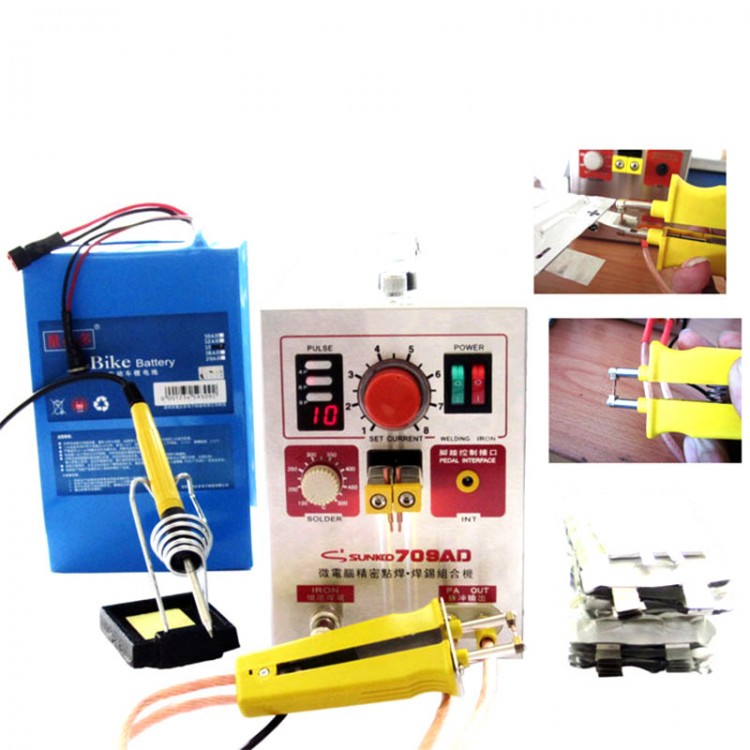

709AD 220V Pulse Spot Welder Battery Welding Soldering Machine 3in1 for 18650 with 71B Welding Pen

Pulse mobile soldering part:

- Soldering pen and cable length:630mm*2
- Cable sectional area :18mm2
- Welding needle size :1.5mm*7mm
- The largest welding pulse current :600A

Thermostat soldering station part:
- Temperatur: 150 degree to 450degree
- Constant temperature precision :+-5 degree
- Power:50W
- Soldering station ouput Output voltage:20VDC
- Heating up time :6-8s to 300 degree

Spot-welder part:
- Supply voltage: AC220V±20V
- Power: 1.5KW (Instantaneous)
- Current: 50-600A
- Time of double pulse: 1~10ms (adjustable)
- Time of four pulses: 2~20ms (adjustable)
- Time of eight pulses: 8~80ms (adjustable)

Scope of application
- Lead sheets of rechargeable battery can be welding rapidly.
- The production,installation,welding of lithium battery or mobile power.
- The welding of lead sheets and wires from metal parts.

The difference between the S709A
- S709AD with pulse display ,not for S709A
- S709AD fixed spot welding distance ,but S709A can adjust spot welding distance
