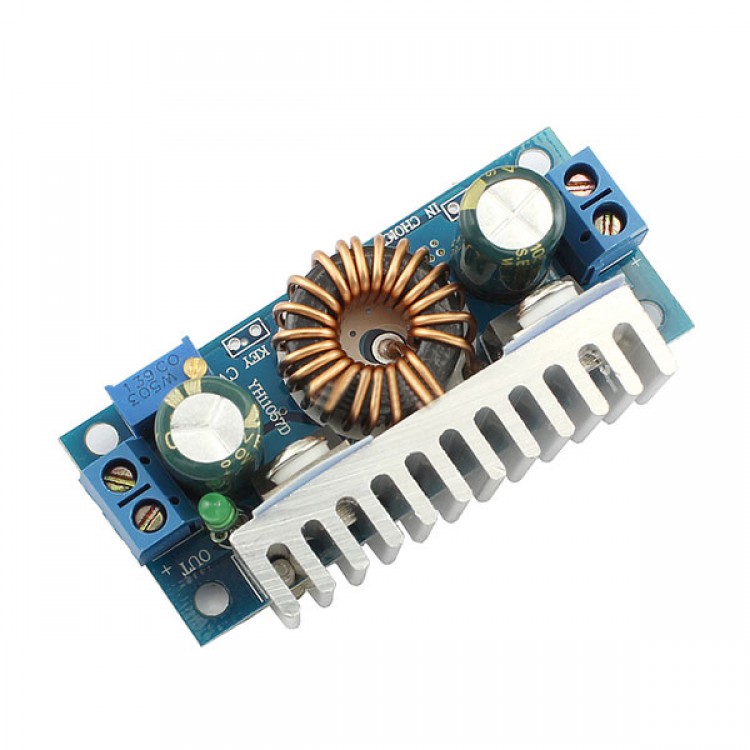

70W DC-DC Boost Module Large Power 8A Surpass 2587
Description:
- 70W Boost module
- Module type: non isolation boost module
- Input voltage: 6-32V(35V limitation)
- Input current: 8A (MAX)
- Static working current: 15mA
- Output voltage: 6-42V continuous adjustable
- Output current: 5A MAX surpass 3A
- Output power: = input voltage *6A
- Working frequency: 150KHZ
- Working temp: -40---85degree
- Overcurrent protection: yes
- Short circuit protection: yes
- Input reverse connection protection: no
