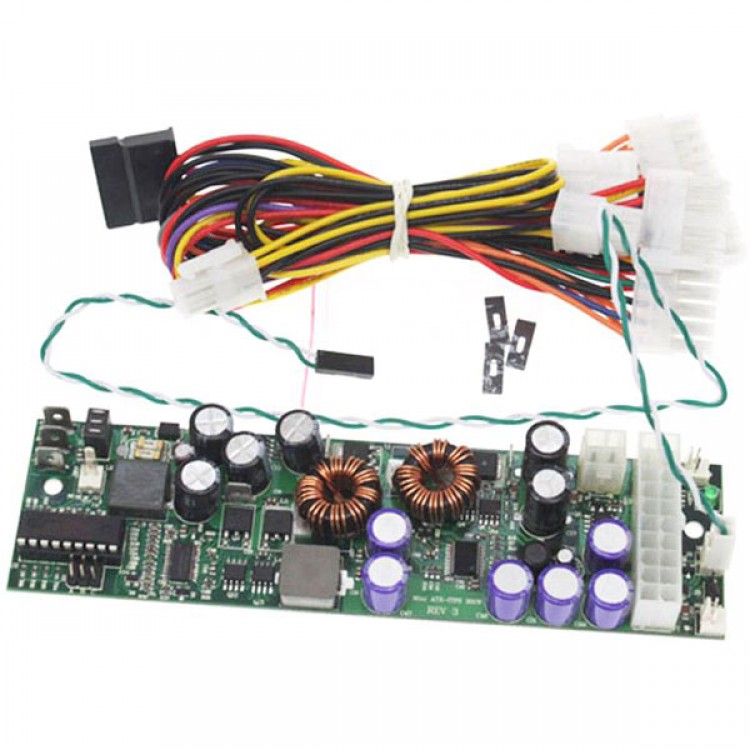

8-28V 200W DC-DC PSU ITX ATX DIP Car PC Power Supply Module
Descriptions:
- DC/DC ATX power supply for automobile application, 12VDC input.
+5V,+12V,+3.3V,-12V,+5VSB and PG (power good signal) outputs.
- Intelligent Power CARPC power -DC/DC power, cost and performance-board computer is optimized intelligent Mini-ITX power supply

Features:
-  high efficiency, thin size
-  supports sleep mode, with audio control signal output
-  OVP, OCP, short circuit and other functions
-  the ignition with ITPS intelligent control functions
-  standard 20/24PIN ATX output
- 8-28V wide input range of design

Specifications:
- The smallest 8-28V DC to DC power supply
- convertor in the world.
- Adopt industrial solid capacitor, ideal for being used in harsh evironment
- High performance with high heat-stand feature, more realiable
- Fanless DC-DC solution for 100% mute operating .
- Compact design, special for mini-itx and 2U case.
- Output Voltage Regulation

Output Min Load(A) MAX Load(A) Regulation
+12V        0.1              10           ±5%
+5V         0.1              10           ±5%
+3.3V       0.1              10           ±5%
-12V         0               0.1          ±15%
+5VSB       0.1              2            ±5%

Parameters:
- Dimensions(mm): L160x W45x20H mm
- DC Input: 8-28V
- DC Output : 200W
- Input Current: Max. 20A
- Efficiency: above 92%
- MTPF: 100,000H
- Operating Temperature: 0*C ~ 60*C
- Storage Temperature: -40*C ~ 70*C
- PPL-ITX electrical parameters

- Deep discharge off value 11.2V
- Input current limit (fuse protected) 15A (15A mini-blade fuse)
- Maximum output power 210 Watts
- Operating temperature -40 to +85 * degrees Celsius
- Storage temperature -55 to +125 degrees Celsius
- MTBF 180,000 hrs @ 50C, 100,000 hrs @ 65C
- Efficiency (input 10 ~ 16V)> 94%, all rails combined, 50% load.
- PCB size 160x45mm
- Input Connector Faston 0.25 "terminal connector automotive
- Output connector ITX Power 20 pin (Molex P / N 39-01-2200)
Packing list:
- 1 * PPL-I-200W Mini-ITX DC-DC Power
