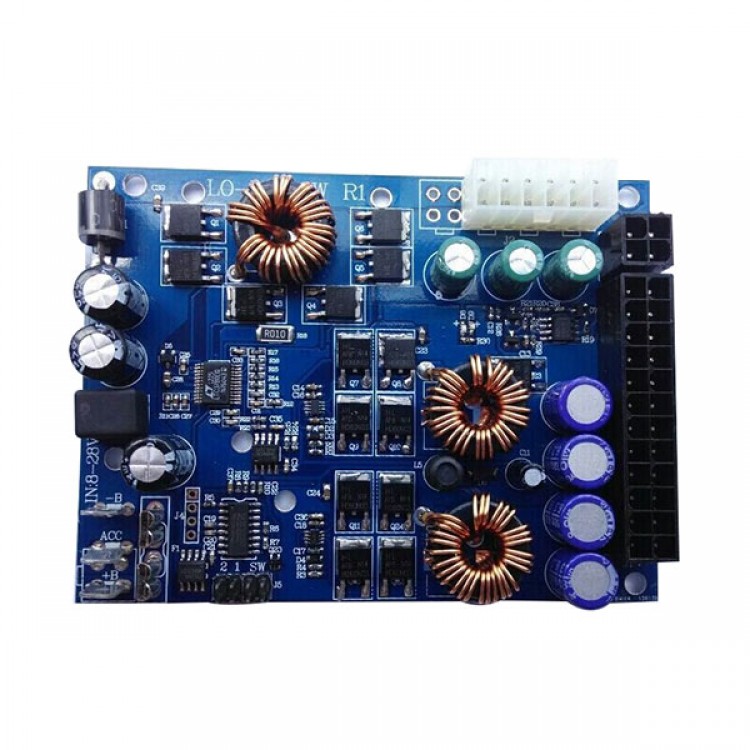

• 8-30V Input Intelligent Automotive ITX Power Supply Output LO-160W ITPS Power Supply

8-30V Input Intelligent Automotive ITX Power Supply Output LO-160W ITPS Power Supply

Availability: In stock, usually dispatched in 1 business day

  • Price:$46.42
  • Price in reward points: 464 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $45.49 $44.56 $43.17 $41.31 Contact US
Quantity:

8-30V Input Intelligent Automotive ITX Power Supply Output LO-160W ITPS Power Supply

Description:

- L0-160W is mainly used for on car battery, compatible with all kinds of mainboard, can be applied to car top box, advertisment player, car monitor and so on

4.0 LW-200W ITPS Parameters:
- Min input operating voltage: 8V
- Max input operating voltage: 30V
- Deep discharge losed fixed value: 11.2V
- Input current limitation(fuse protection):15A (15A mini-blade fuse)
- Max output power: 160 Watts
- Operation temp: -40 to +85* degrees Celsius
- Storage temp: -55 to +125 degrees Celsius
- Average fault time: 180,000 hrs @ 50C, 100,000 hrs @65C
- Effect: (Input: 10~16V)    >94%, all rails combined, 50% load.
- PCB dimension: 110X83mm
- Input interface: Faston 0.25” terminal car interface
- Output interface: ITX Power 24 pin (Molex P/N 39-01-2200)

Maximum Power Characteristics
Output Rail     Current (Max)     Current Peak (<60 seconds)     Regulation
- 5V                                  8A                                 12A                                 1.5%
- 3.3V                              8A                                  12A                                 1.5%
- 5VSB                         1.5A                                   2A                                  1.5%
-12V                          0.15A                                 0.2A                                5-%
- 12V                          8A* (see below)                9A                                    2%
When operates at 12V or at Extreme Temperature, reduce to 80W, need to add a fan

12V output current:
Input (V)     12V rail current     Input (V)     12V rail current
- 8V            4A                               13V             8A
- 9V             5A                               14V             8A
- 10V           6A                                15V             7A
- 11V          7A                             14-18V              6A
- 12V          8A                             20-26V              5A
Low input voltage (8-10V or 5-28V), max bearing need to add a fan
