8 in 4 out 30A Network Relay Smart Home Controller TCP UDP Ethernet Internet Net Switch

Availability: In stock, usually dispatched in 1 business day

  • Price:$88.46
  • Price in reward points: 885 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $86.69 $84.92 $82.27 $78.73 Contact US
Quantity:

8 in 4 out 30A Network Relay Smart Home Controller TCP UDP Ethernet Internet Net Switch

Features:

- Support network connection encryption authentication
- Power supply part adopts LM2596S switch power supply
- 4 channel relay outputs control, 30A
- 8 digital inputs detection, support for passive dry contact (also supports active 5-12V DC switching inputs), With active trigger switch reporting functions.
- Network Direct integration, support TCP client, TCP server, UDP protocol

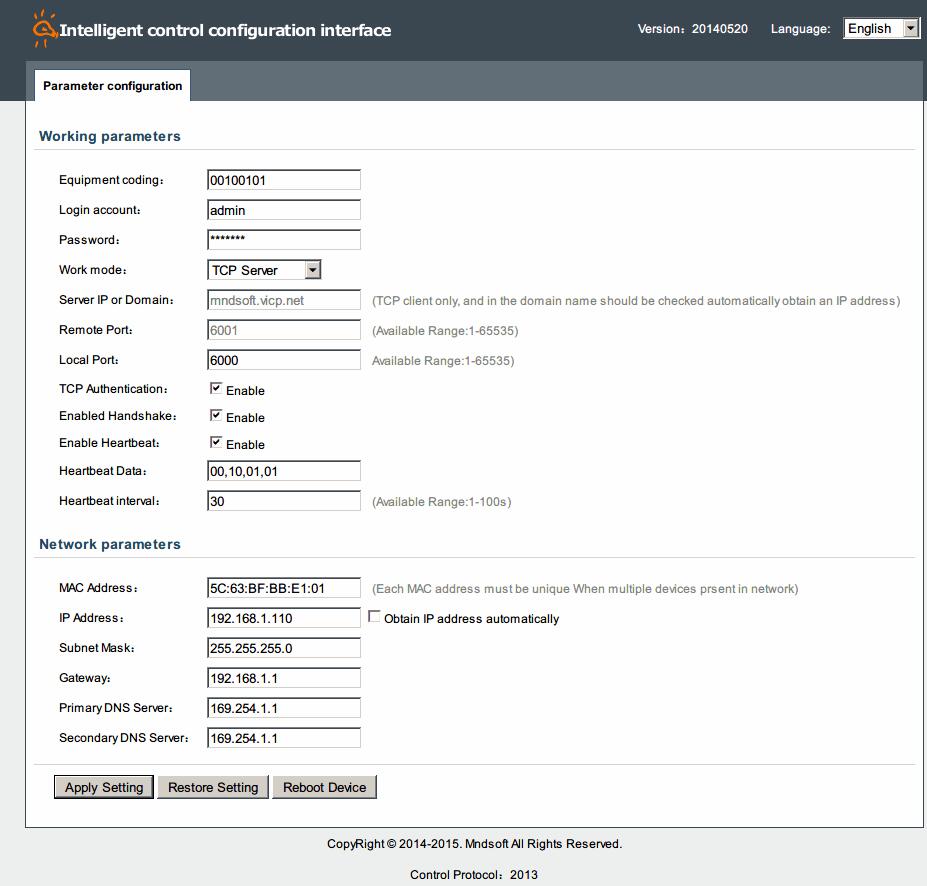

- Support network WEB parameter settings, you can connect to a wireless router to get wireles wifi control.  default IP: 192.168.1.110, port 6000, admin / admin
- Standard 9V or 12VDC power supply (default 12v) , can be round hole or terminals type. (Leave message when ordering)
- Support Android mobile phone for wifi control
- Supports a variety of control modes. Supports digital input trigger relay switches, remote real-time control, timing control mode
- Easy to configure. Each channel can be configured among three modes.
- Trigger delay can be configured. 1-99 seconds.
- Auto power off memory. automatically save the last switch state when disconnected, restore after power on.
- Single or multiple jog control. Time delay control single channel or multi-channel at the same time.
- Support Android phone software WIFI control
- The power supply is 9/12V, optional,please leave us a message about the one you want,or 12V by default.

Package List:

- 1 x Relay control box
- 1 x Power adapter
- 1 x RJ45 network cable 1.8 m
