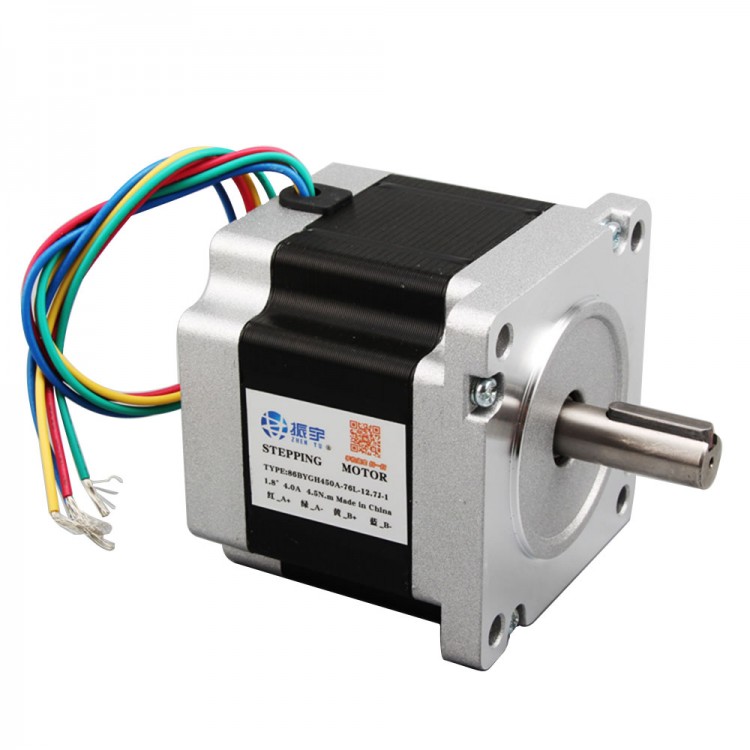

86BYGH450A Stepper Motor 4-Phase 12.7mm Shaft Diameter for CNC Engraving Machine

Availability: In stock, usually dispatched in 1 business day

  • Price:$76.57
  • Price in reward points: 766 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $75.04 $73.51 $71.21 $68.15 Contact US
Quantity:

86BYGH450A Stepper Motor 4-Phase 12.7mm Shaft Diameter for CNC Engraving Machine

Specification:

- Shaft diameter: 12.7mm
- Size: 86*76mm
- Length of the output shaft: 32mm
- Mount size: 70*70mm
- Keyway size: 5*20mm
- Step angle: 1.8 degree -+5%
- Insulation resistance: 500V DC 100mOhm Min
- Wnvironment temperature: -20~50 degree C
- Temperature rise: 80 deg C max.
- Radial runout: 0.02mm Max.
- Axial runout: 0.1-0.3mm
- Phase: 4
- Current: 4A
- Inductance: 3.5mH
- Maximum static torque: 2.5 kg.cm
- Weight: 2.3kg
- Body: 86*76mm
- Moment of inertia: 2700g.cmxcm

Package included:
- 1 x Stepper Motor
