Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $28.99 | $28.40 | $27.51 | $26.33 | Contact US |

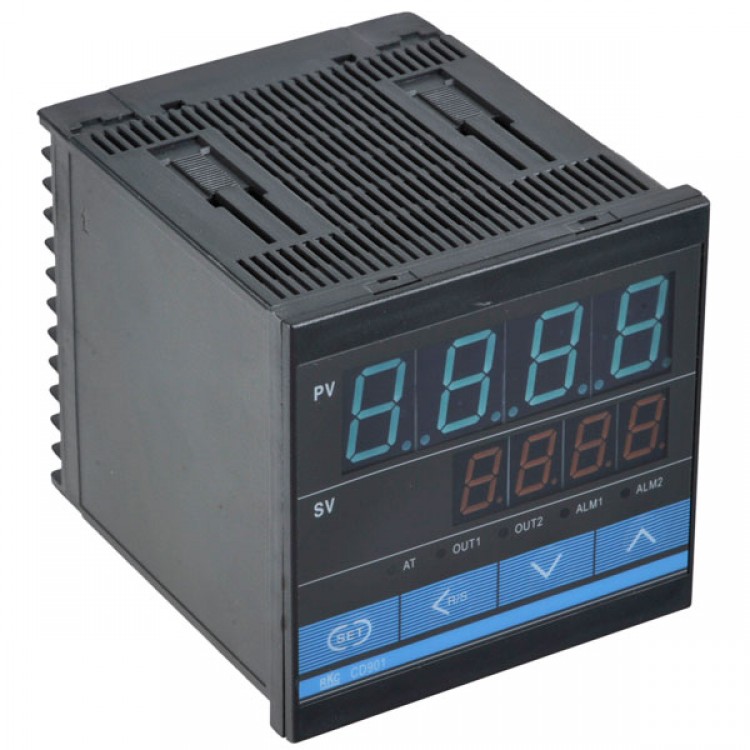

96*96 Dual Digital Intelligent PID Temperature Controller CD901 SSR
Specfication:
- Dimension (width*high) mm
- 96*96 D:72*72 E:48*96 F:96*48 G:48*48 T:160*80
- Adjustment way
- breaking/connect contact point PID adjustment
- driving solid state relay PID adjustment
- PID adjustment of output single phase trigger signal
- output single phase zero passage contact signal PID adjustment
- output three phase zero passage contact signal PID adjustment
- output0~10mA ETC. current PID adjustment
- Alarm function
- NO Alarm function
- Upper limit alarm function
- Lower limit alarm function
- Upper and Lower limit alarm function
- Input signal: Universal
- Thermocouple: K,J,S,T, E, ETC
- Thermal resistance: Cu50, Pt100, ETC
- Hall transmitter, CP differential manometer or voltage
- Remote sending manometer
- Standard current: 0~10mA, 4~20mA
Input signal |
Thermocouple :K, E, S, B, J., T, R ,N |
Accuracy | +/-0.5% F.S +/-1word |
Control way | Fuzzy PID control, states control, manual control |
Control output |
Relay contact point: AC250V 3A (resistance) |
Alarm type | high limit alarm, lower limit alarm, upper high limit alarm, below lower limit alarm |
Transmitter output |
0-10mA,4-20mA,0-5V,1-5V |
Order NO.: |
CD901 |
Power output | DC24V(used in double line transmitter) |
Work power | AC 220V +/-10% 50/60Hz,AC85-264V 50/60Hz |
