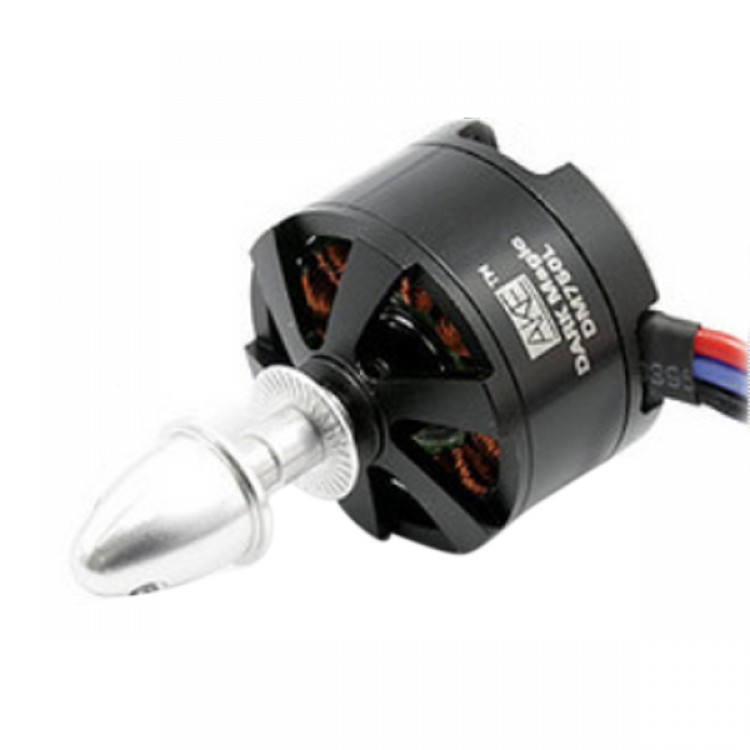

A.K.E DARK Magic DM750L Multi Rotor Aircraft Ourrunner Brushless Motor 750KV
  • A.K.E DARK Magic DM750L Multi Rotor Aircraft Ourrunner Brushless Motor 750KV

  • SKU:15358
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 6
  • Price:$57.38
  • Price in reward points: 574
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $56.23 $55.08 $53.36 $51.07 Contact US

A.K.E DARK Magic DM750L Multi Rotor Aircraft Ourrunner Brushless Motor 750KV

Description:
- This motor is compatible with 99% market standard esc.
- Motor perfect compatible with Xiarcraft X650V, 450P; DJI F330, the F450, F550; SIGMA  Q4, Y6, HEXA-600C series, as well as other DIY multi-axis aircraft
- With high-speed brushless ESC 12A above is recommended.
- The motors are suitable for large load aircraft.
- Typical flying time: 17 minutes (X650V4+10x4.5+5850mAh)

Specfication:

- A.K.E DARK Magic DM750L parameters:
- Stator diameter (Stator Diameter): 28mm
- Stator thickness (Stator Thickness): 10mm
- (Stator Arms): 12
 - Magnet Poles: 14
- Allow lipoly battery cell (No. of Li-Po cells): 3S/4S
- Suitable Prop size: 10 "-14"
- No-load speed (Motor KV): 750RPM / V
- No-load current (No-Load Current): 0.36A/12.6V
- Maximum current (MAX. Continuous Current): 20A
- Maximum power of (MAX. the Power): 180W (3S) / 240W (4S)
- Rotor diameter (Outside Diameter): 35mm
- (Body Length): 27.5mm
- (Overall Shaft Length): 47.5mm
- (Shaft Diameter): 4.0mm/5.0mm/6.0mm
- Weight (Weight): 69g (excluding rotor grips)
- Typical value of thrust: 820g @ 12V (10 x 4.5 Prop @ 6900RPM) 10A
- Typical operating current: 5.6A x 4 (X650V4/3S Li-Po 1.75kg/10x4.5)
- Typical operating current: 5.2A x 4 (X650V4/3S Li-Po 1.75kg/12x6.0)

- Package Included: aluminum alloy rotor grips, 5.0mm and 6.0mm adjustable ring.
- The motor had  2.0mm banana male plug
