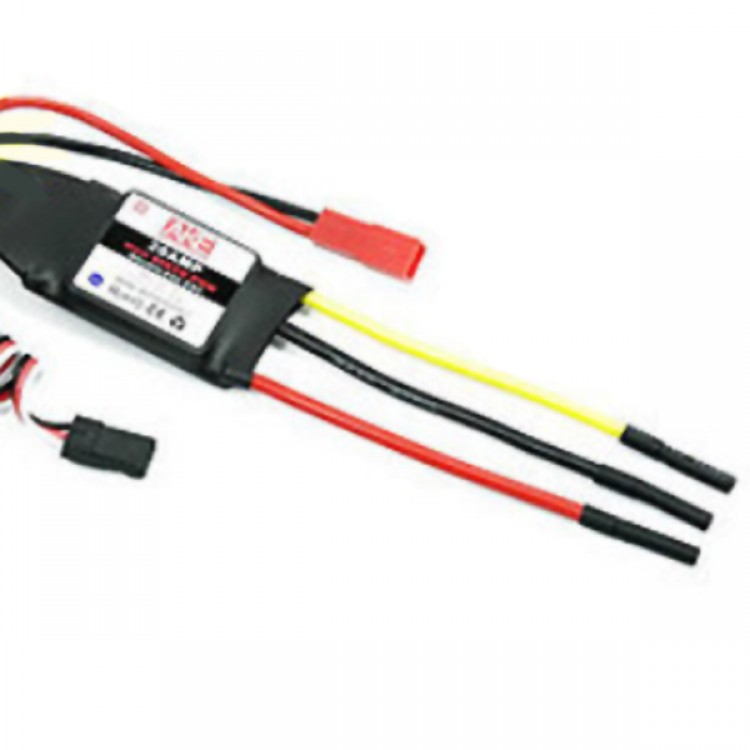

A.K.E HighSPEED PWM 20A ESC Support DJI WKM XAircraft KK K6300S

A.K.E HighSPEED PWM 20A ESC Support DJI WKM XAircraft KK K6300S

Description
- AKE HighSPEED PWM series brushless ESC is specially designed for multi-axial aircraft, support 2ms pulse width control, with up to 500Hz refresh rate, capable of responding to control signals issued by the flight control with to excellent speed linear, smooth and delicate touch; high-performance power MOSFET with low resistance, low heat, high efficiency, with optimization for multi-axis control aircraft brushless motor control algorithms, to bring accurate, agile, reliable, excellent performance brushless motor, so that multi-axis aircraft flying more stable and reliable control feel more desirable.

- This A.K.E HSP series 20A brushless ESC is perfectly suitable for modifying vast majority of flight controls, such as XAircraft X450, X450P, X650V4 or X650V8, etc. Perfectly support DJI WKM flight control and XAircraft FC1212-S flying control. Built-in 2A linear BEC, Fully satisfied DJI WKM`s using requirement (WKM requires BEC power supply>1A, or system will be unstable). According to test, this ESC does not need any extra BEC.

Features:
- Adopts high speed CPU, supporting at most 2ms pulse width control, with up to 500Hz fresh rate, brings an very linear, smooth and delicate touch;
- Super compatibility, compatible with all the radio sets in market and vast majority of flight controls (such as DJI full range, XAircraft FC1212-S, KK, etc.)
- With up to 2A linear BEC contineous output current, fully satisfied DJI WKM`s using requirment;
- Multi-axis controller algorithm for the optimization of aircraft
-  Ultra-low-impedance PCB, is highly resistant to current capacity;
- With abnormal input voltage/low voltage battery protection/overheat protection/throttle signal lost protection, multiple protection, effectively extending the life of the ESC;
- A common start/soft start/super soft and start three startup modes for multi-axis aircraft, helicopters and fixed-wing aircraft;
- with a throttle correction, so that more simultaneous multi-axis control.

User Note 1: When the system is installed with more than one ESC, please keep only the red one of several ESC signal cables is in leading through state, then disconnect the rest ESC red signal cable, the way can improve ESC inner BEC working efficiency, and also can avoid unnecessary power consumption.
User Note 2: Highly recommend using AKE quarter cable or six cable to transfer power for the ESC.

A.E.K HighSPEED PWM ESC 20A Specifications:
- Battery: 2-4s lipo battery
- Maximum continuous current: 20A
- Current capacity: 22A
- BEC: 5V/2A linear mode
- Size: 11mm x 25mm x 45mm
- Weight: 22g (including wire)
- Input: JST Female (length 95mm)
- Signal lines: JR Male (length 245mm)
- Output plug: 2.0mm female banana plug (length 70mm)
