• A.K.E HighSPEED PWM 40A ESC OPTO/6S Power Supply Support DJI WKM XAircraft KK K6300S)

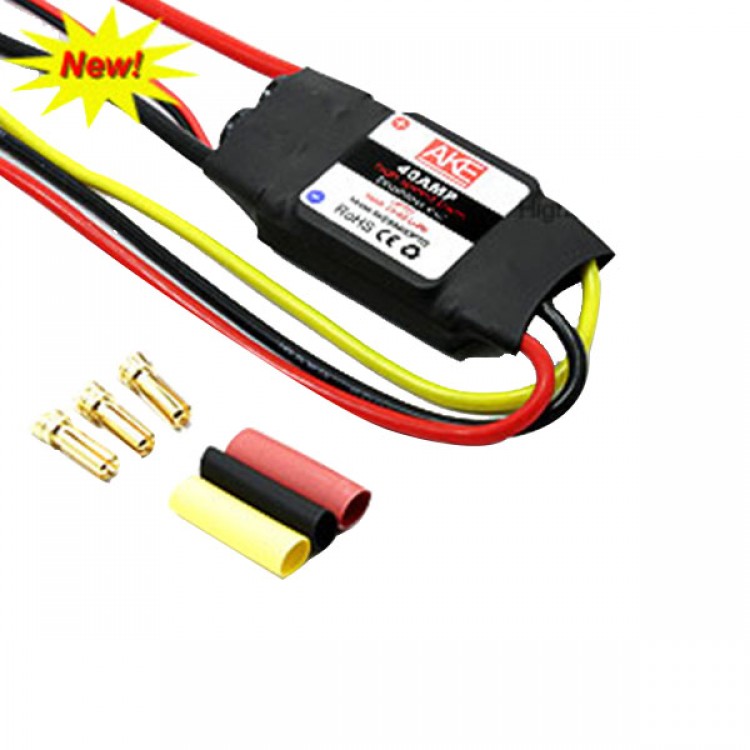

A.K.E HighSPEED PWM 40A ESC OPTO/6S Power Supply Support DJI WKM XAircraft KK K6300S)

Availability: Out Of Stock

  • Price:$47.90
  • Price in reward points: 479 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $46.94 $45.98 $44.55 $42.63 Contact US
Quantity:

A.K.E HighSPEED PWM 40A ESC OPTO/6S Power Supply Support DJI WKM XAircraft KK K6300S)

Product Description
- What you should know: A.K.E HSP-40A is a high voltage ESC, could support 6S power supply, which is unique in HighSPEED PWM series. It has no built-in BEC or low-voltage power supply ability as receiver or flight controller, so you could cut off power supply from built-in BEC to flight controller no need to snip "red line" amoung signal wire. This 40A high speed ESC could satisfy your heavyload requirment!
- Remind: 3.5mm banana femal connector has been soldered well, you could also get 3.5mm banana male connector as well.
- AKE HighSPEED PWM series brushless ESC is specially designed for multi-axial aircraft, support 2ms pulse width control, with up to 500Hz refresh rate, capable of responding to control signals issued by the flight control with to excellent speed linear, brings an very linear, smooth and delicate touch; high-performance power MOSFET with low resistance, low heat, high efficiency, with optimization for multi-axis control aircraft brushless motor control algorithms, to bring accurate, agile, reliable, excellent performance brushless motor, so that multi-axis aircraft flying more stable and reliable control feel more desirable.

This A.K.E HSP series 40A brushless ESC is perfectly suitable for modifying vast majority of flight controls, especially for medium and huge multi-rotor aircrafts. Perfectly support DJI WKM flight control and XAircraft FC1212-S flying control.

Features:
1. Adopts high speed CPU, supporting at most 2ms pulse width control, with up to 500Hz fresh rate, brings an very linear, smooth and delicate touch;
2. Super compatibility, compatible with all the radio sets in market and vast majority of flight controls (such as DJI full range, XAircraft FC1212-S, KK, etc.)
3. Multi-axis controller algorithm for the optimization of aircraft
4. Ultra-low-impedance PCB, is highly resistant to current capacity;
5. With abnormal input voltage/low voltage battery protection/overheat protection/throttle signal lost protection, multiple protection, effectively extending the life of the ESC;
6. A common start/soft start/super soft and start three startup modes for multi-axis aircraft, helicopters and fixed-wing aircraft;
7. with a throttle correction, so that more simultaneous multi-axis control.

A.E.K HighSPEED PWM ESC 40A Specification:
- Battery: 2-6s lipo battery
- Maximum continuous current: 40A
- Burst Current:55A
- Size: 12.2mm x 27.8mm x 47mm
- Weight: 37.5g (including wire)
- Signal lines: JR Male (length 230mm)
- Output Connector: 3.5mm banana femal connector (15mm, 16AWG)
