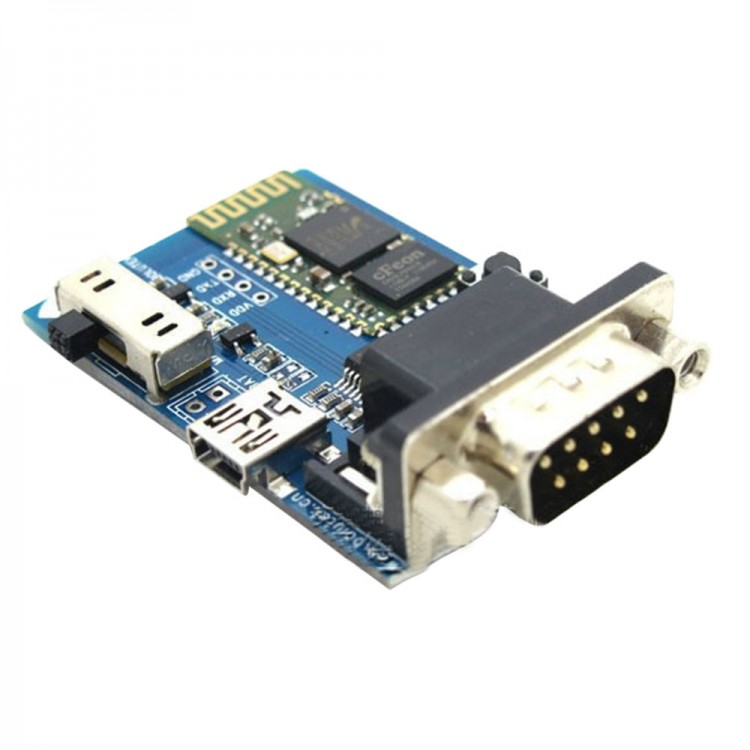

A20A Bluetooth Serial Port Adapter Bluetooth Communication Module RS232 Board
Specification:
- RS232 Bluetooth Seria Adapter
- Execution standard: the bluetooth SIG v2.1 + EDR
- Bluetooth protocol: Bluetooth serial port profile (SPP)
- Interfaces: RS232
- Communication rate: 1200, 2400, 4800, 2400, 19200, 38400, 57600, 115200, 230400, 460800, 921600, 1382400 BPS
- Modulation methods: 2.4 G ISM direct sequence frequency hopping (FHSS)
- Communication distance: open space 15 meters, Class 2
- Transmission power: 4 dBm
- Receiving sensitivity - 79 DBM
- Working voltage: 5 v
- Work/dormancy current: 40 mA / 1.6 mA (typical)
- Working environment temperature/storage environment temperature: - 10~50 degrees Celsius / - 20~80 degrees Celsius
- Size: 56.5 x 38.5 x 14.5mm
English instructions: Click here
Package Included:
- 1 x RS232 Bluetooth Seria Adapter
