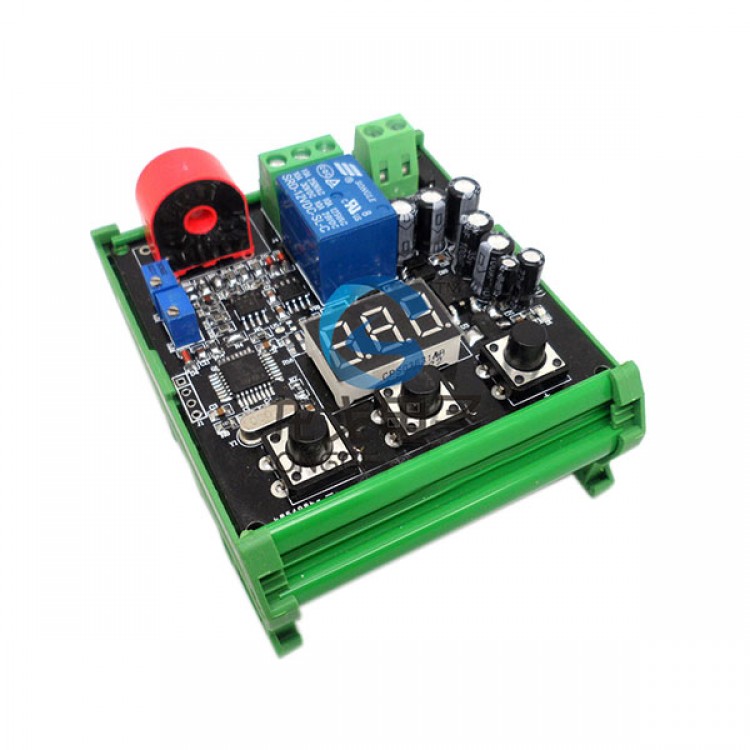

• AC Current Sensor Module AC 0-5A Linear Output Delay Adjustable with Shell

AC Current Sensor Module AC 0-5A Linear Output Delay Adjustable with Shell

Availability: In stock, usually dispatched in 1 business day

  • Price:$23.53
  • Price in reward points: 235 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $23.06 $22.59 $21.88 $20.94 Contact US
Quantity:

AC Current Sensor Module AC 0-5A Linear Output Delay Adjustable with Shell

Description:

- Size: 72*70*22mm
- Working voltage: DC 24V
- Output mode: switch output (delay adjustable)
- Current detection range: AC 0-5A
- Overcurrent signal setting points are adjustable, AC 0-5A full range linear adjustable
- Precision: 5‰
- Debug method:
Press SET button for 2S and release, it is flashing, which means it becomes current protection points setting state, press + and - to set the value. After pressing SET button for one time it will switch to digital tube. When completing the setting, press SET button for 3-5S, the display shows the current value, which means setting is completed (default protection points current value is 1A), setting range (0-5A). If you need to set protection points resume time, please press SET button 5-8S until the digital tube starts flashing, the operation method is the same as current protection points. Setting range (0-99.9S) default is 3S. After completing setting, press SET button for 3S, the display becomes current value, the setting is successful. If the real current value is beyond 5A, the digital tube will show three cross lines
- The potentiometer on the module is forbidden to debug, we will not be responsible for the damage made on module
