|Quantity||3+ units||10+ units||30+ units||50+ units||More|
|Price /Unit||$180.22||$176.54||$171.03||$163.67||Contact US|

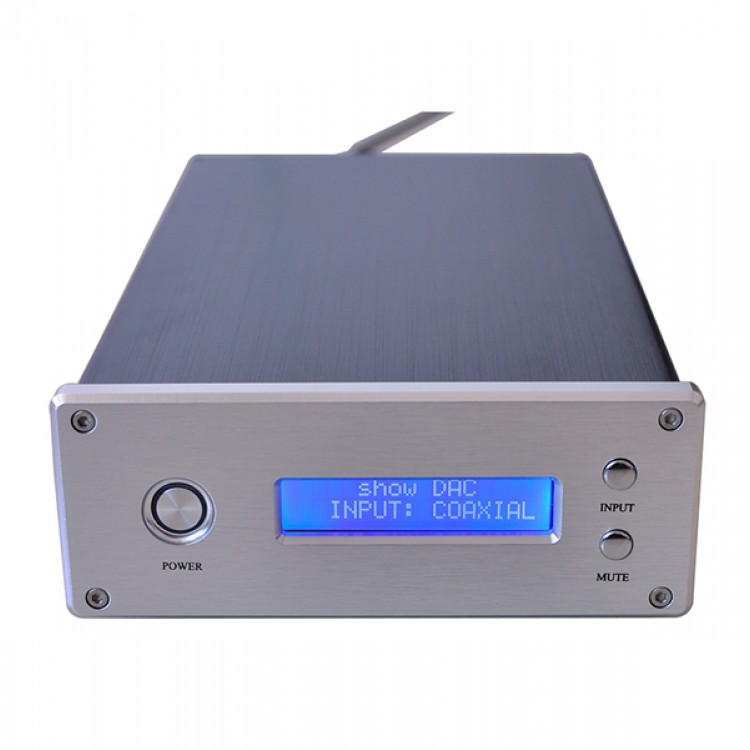

AC110V/220V Hi-Fi 24bit/192K Audio Decoder Preamp CS8416 Dual WM8741 USB Coaxial Optical DAC
- External dimensions:Width 145 mm Height 54 mm Depth 252 mm
- Input Voltage:~ AC115V&230V available.
- Note:Default only support coaxial, optical input, not support USB.
- USB interface is optional,.we have CM6631A or XMOS USB module available. CM6631A module price 30USD/pcs. XMOS USB module price 52USD/pcs
- Digital receiver is the CS8416, and MCU control, work in software mode, using high-precision active crystal, effectively reduce jitter. Input sample rate support 16-24bit44.1k, 48k, 88.2k, 96k, 176.4k, 192k, automatic identification.
- Wolfson company's top decoder chip WM8741, the highest conversion capability 24bit/192K, DF circuit to bring the most advanced perfect musical expression and ultra-low distortion. And dual-chip design, a chip is responsible for decoding a channel that has a perfect performance in all aspects. IF thick warm, delicate high-frequency
- Filtered output with a dual op amp OPA2134PA, slender and soft treble, bass elastic. With op-amp socket for easy replacement of different op amp.
- Imported Philips BC (25v2200uf * 6), with a mellow warm tone.
- ON company LM317T, LM337T, LM7805 voltage regulator IC. Linear Technology LT1117-5V, AMS-1117-3.3V regulator.
- Coaxial and fiber supports up 24bit192K
- Weight:2.6Kg (PLS choose EXPress shipping like DHL/EMS,or we will cancel order)
- Fininished Soft control display CS8416, 2X WM8741 DAC X 1
