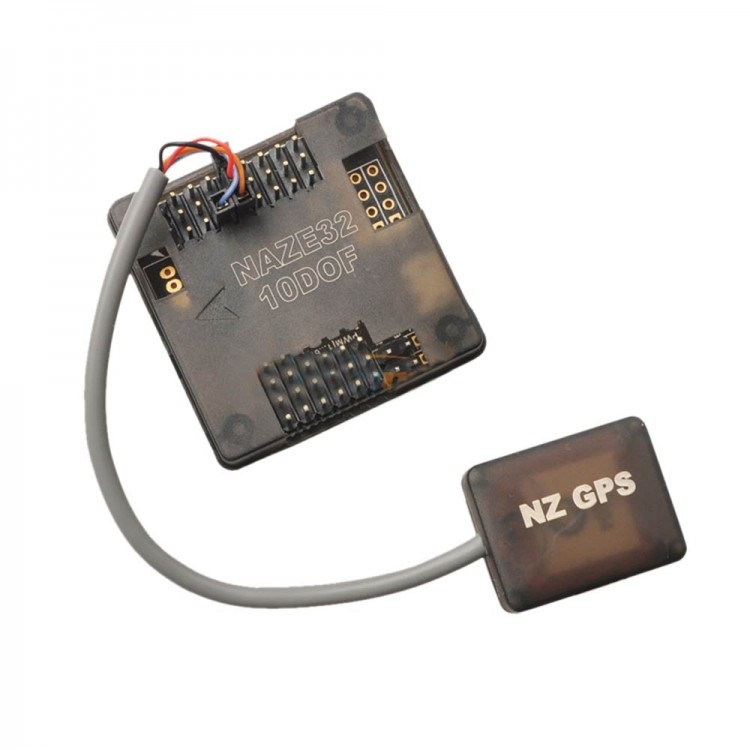

• Acro Afro Naze32 NAZER 32 10DOF Flight Controller Straight Pin+NZ GPS for FPV Multicopter Quadcopter

Acro Afro Naze32 NAZER 32 10DOF Flight Controller Straight Pin+NZ GPS for FPV Multicopter Quadcopter

Availability: In stock, usually dispatched in 1 business day

  • Price:$34.19
  • Price in reward points: 342 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $33.51 $32.82 $31.80 $30.43 Contact US
Quantity:

Acro Afro Naze32 NAZER 32 10DOF Flight Controller Straight Pin+NZ GPS for FPV Multicopter Quadcopter

Acro Afro Naze32 NAZER 32 10DOF Flight Control
Introduction:

Designed for use with small indoor or small to mid-sized outdoor multirotor crafts, or as a standalone camera stabilizer. The Naze32 flight controller is extremely simple to setup, with configuration based on the familiar “MultiWii” software.

Features:
- Battery voltage monitoring
- Built-in FrSky telemetry converter
- Modern 32-bit processor (STM32 F103) running at 3.3V/72MHz.
- 10DOF
- Onboard USB for setup and configuration
- Extra bright LEDs
- Modern GUI for all operating systems, Baseflight Configurator

Specifications:
- Height: 36mm
- Width: 36mm
- Weight: 6 grams (no headers, 8 grams with)
- Sensors: MPU6050
- Processor: STM32 F103
- Barometer: MS5611
- Compass: HMC5883
- Headers: Includes 1x 3x6 90 degree pin headers, 1x 1x2 straight pin headers, 1x 2x3 90 degree pin headers, and 1x 2x5 straight pin headers.

Notes:
If you do not have a CPPM enabled Receiver, you will also need to purchase the RC Breakout Cable.

NZ GPS
Features:

- This GPS is customized for Naze32 flight controller
- Internal Ublox 7 series chip core of manufacture OEM
- Super mini size,weight only 8g with protective case ,is best for Racing drones like QAV250/ZMR250 .

Specification:
- Size  26mm*21mm
- Weight: 8g
- Wire length: 15cm
- NZ GPS suitable for NAZE 32 flight controller, 2.54 1 pin interface

Connection diagram:
- Black to GND
- Red to +5V
- Blue to TX
- Orange to RX

Notes: Because of the super mini size ,there is no LED on the GPS, so you'd better use with OSD

Package included:
- 1* NAZE32 10DOF flight controller (striaght pin)
- 1* NZ GPS
