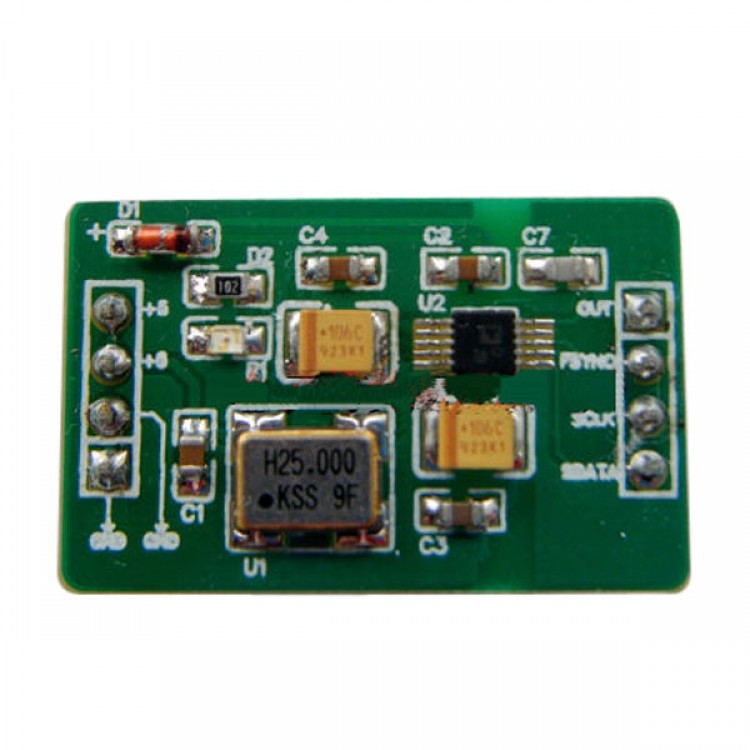

AD 9833 Module DDS Singnal Generater Module Sine Wave Square Wave Triangular Wave
  • AD 9833 Module DDS Singnal Generater Module Sine Wave Square Wave Triangular Wave

  • SKU:23429
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 3
  • Price:$28.03
  • Price in reward points: 280
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $27.47 $26.91 $26.07 $24.95 Contact US

AD 9833 Module DDS Singnal Generater Module Sine Wave Square Wave Triangular Wave
Features:
- 0 MHz~12.5 MHz
- +2.3 V to +5.5 V Power Supply
- 25 MHz Speed
- 3 Wire PSI Port
- Tiny 10-Pin μSOIC Package
- Serial Loading
- Sinusoidal/Triangular DAC Output
- Power-Down Option
- Narrowband SFDR > 72 dB
- 20 mW Power Consumption at 3 V

AD9833 is a low-power, frequency programmable sine, triangle and square wave generator. Waveform generator used in a variety of measurements, the field of motivation and time-domain response. Output signal frequency and phase are programmable, so that the output signal frequency and phase is very difficult to adjust. No external devices. Frequency registers 28BIT bit, if the base frequency input 25MHZ, the smallest output precision 0.1HZ. Similarly, if the reference frequency input 1MHZ, the smallest output precision 0.004Hz
Applications:
- Digital Modulation
- Portable Equipment
- Test Equipment
- DDS Tuning
