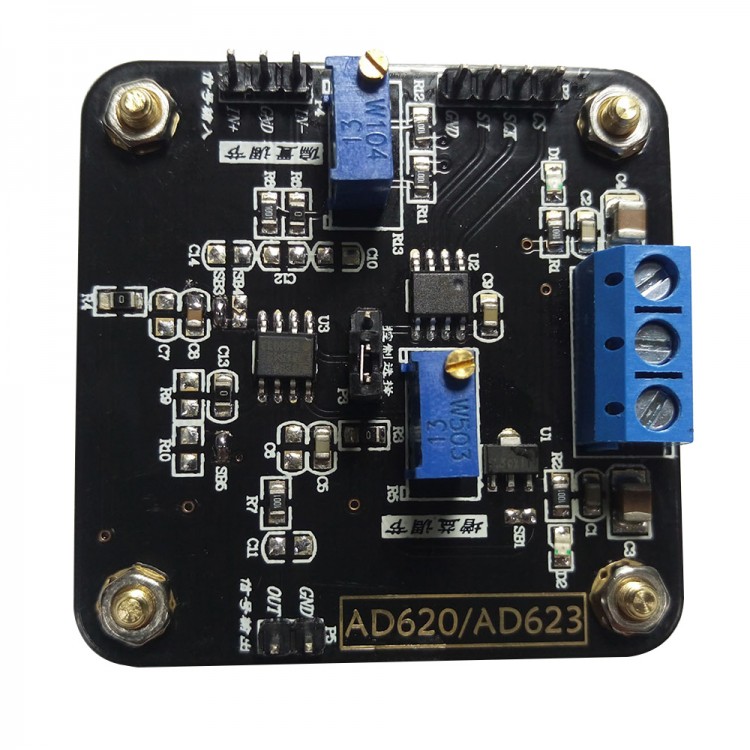

AD620 Voltage Amplifier Module Digitally Controlled Potentiometer MCP41010 Difference Amp
Specifications:
- Name: AD620 Voltage Amplifier Module
- Size: 47*33mm
- Power supply: -+12V
Main features:
- Low power consumption: 1.3mA Max.
- High accuracy: 40 x10-6 Max.
- Power supply: -+2.3~-+18V
- Input offset voltage: 125uV Max.
- Input offset voltage drift: 1uV/ degree C Max.
- Input offset current: 2.0nA Max.
- CMRR: 93dB (min; G=10)
- Noise voltage: 0.28uVP-P (0.1-10Hz)
- Frequency bandwidth: 120KHz (G=100)
Parameters (recommend):
- Power voltage: -+15V
- Power current: 0.9Ma
- Short circuit curret: -+18mA
- Conversion speed: 1.5V/us
- Working temperature: -40~85 deg C
Limit value:
- Power voltage: -+18V
- Storage temperature: -65~150 degC
- Internal power consumption: 650mW
Package List:
- 1 x AD620 Voltage Amplifier Module
