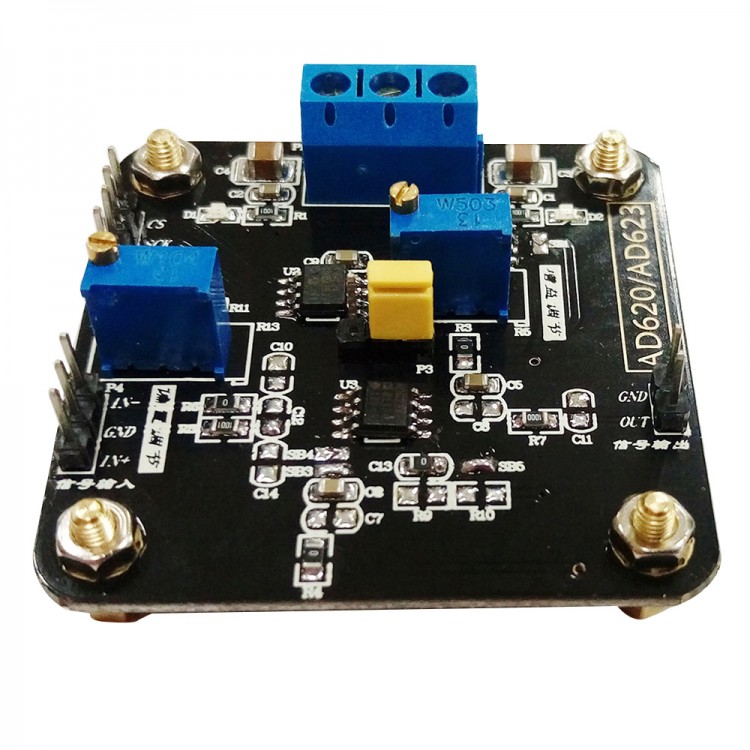

AD623 Instrument Amplifier Module MCP41010 Digital Control Potentiometer Programmable Amplifier Gain Board

Availability: In stock, usually dispatched in 1 business day

  • Price:$18.06
  • Price in reward points: 181 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $17.70 $17.34 $16.80 $16.07 Contact US
Quantity:

AD623 Instrument Amplifier Module MCP41010 Digital Control Potentiometer Programmable Amplifier Gain Board

Features:

- Ease of use
- Performance with a score higher vertical design
- Single power supply and dual power supply
- Rail-to-rail output swing
- The input voltage range up to voltage or less 150 mV (single power supply)
- Low power consumption, maximum supply current of 550 uA
- Through an external resistor to set the gain, the gain range: 1 (no resistance) to 1000
- High-precision dc performance
  Gain Accuracy: 0.10% (G = 1)
  Gain Accuracy: 0.35% (G> 1)
  Gain drift: 10 ppm (G = 1)
  Input bias current: 25 nA (max)
- Excellent AC characteristics
  CMRR: 90 dB (minimum, G = 10); CMRR: 70 dB (minimum, G = 1,60 Hz, 1kohm Unbalanced power supply)
  Bandwidth: 800 kHz (G = 1)
  0.01% settling time: 20 us (G = 10)
- Noise:Input referred noise: 35 nV/Hz (1 kHz, G = 1)

Chip Applications:
- Low-power medical equipment
- Sensor interface
- Thermocouple Amplifiers
- Industrial process control
- The differential amplifier
- Low power data acquisition

Package include:
- 1 x AD623 Amplifier Module
