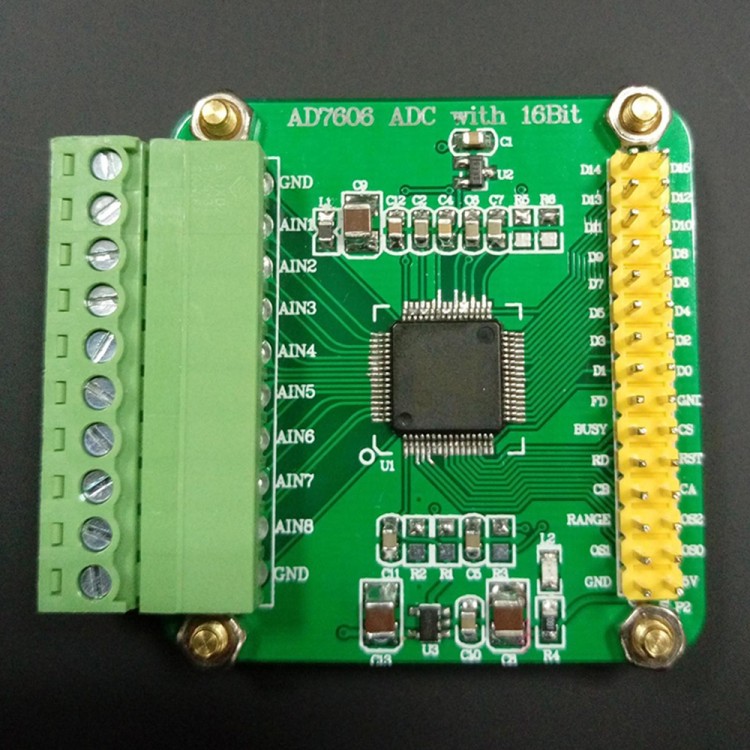

AD7606 AD Data Acquisition Module 8CH DAS 16bit ADC Smaplign Rate 200KHz
Specification:
- 8 channel analog input, impedance 1MOhm
- Input range -+5V -+10V. IO controls range
- Resolution: 16bit
- Maximum sampling rate 200Ksps
- Built in benchmark
- Single 5V power supply
- SPI interface or 16bit bus interface. Interface IO level can be 5V or 3.3V.
Chip features:
- 8/ 6/4 channel Synchronous sample input
- True bipolar input simulation range: -+10V, -+5V
- 5V analog single power supply,2.3V to +5V
- 1MOhm analog input impedance
- Two order anti aliasing analog filter
- High throughput rate: 200kSPS ( all 8 channel)
Application:
- Power line monitoring and protection system
- Multi phase motor control
- Meter and control system
- Multi-axis location system
- Data acquisition system
Package List:
- 1 x AD7606 AD Data Acquisition Module
