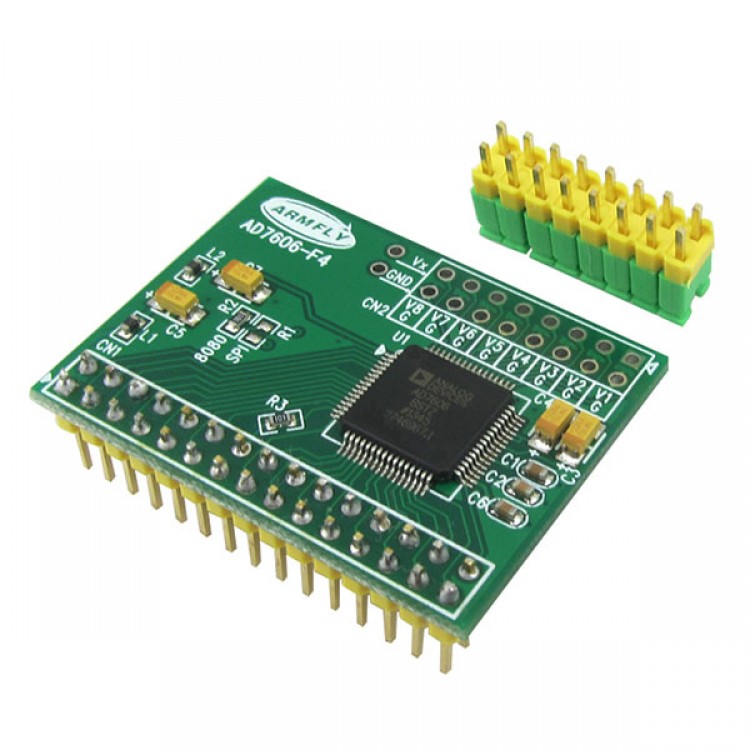

AD7606 Data Collection Module 16 Bits ADC 8 Channel Synchronous Sampling Frequency 200KHZ
Description:
- Adopting AD7606 high precision 16 bits ADC chip
- 8 Channels analog input, resistance 1M ohm (no need negative power supply, no need front end analog operational amp circuit, can directly connect with sensor output)
- Input range is +-5V, +-10V, can control range by IO
- Definition rate is 16 bits
- Most sampling frequency 200Ksps, support 8 grades sampling setting
- Buitl in datum
- Single 5V power supply
- SPI interface or 16 bits BI, the interface IO electrical level can be 5V/ 3.3V
Note:
- To make customer easier to choose, the PCB board analog quantity input double pins are not welded
- With 2*8 dual pins and 8 jumper cable cap
- If you need the welded version, please leave us a note, otherwise we will send you the not welded version
