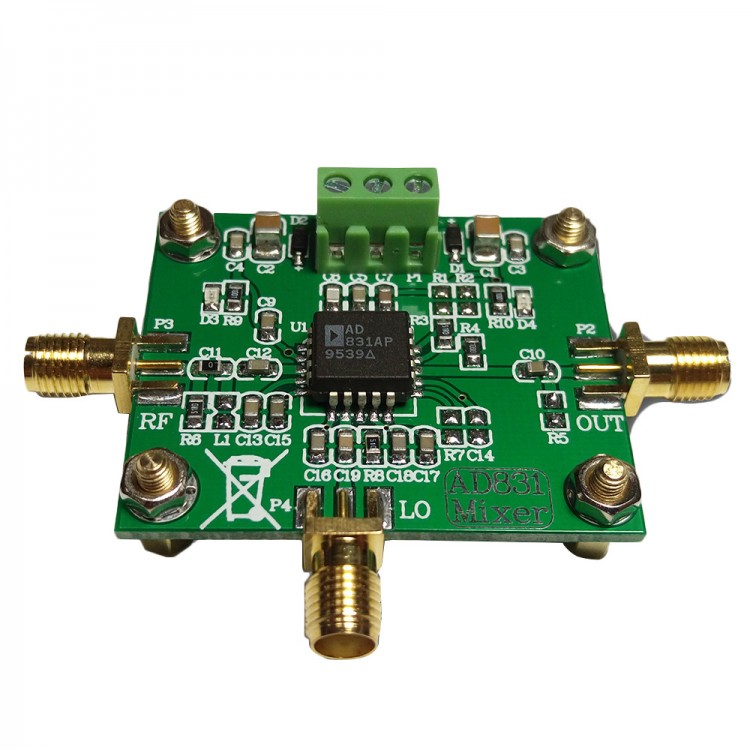

AD831 Module Low Distortion High Frequency Mixer Active Module 500MHz for DIY

Specifications:

- Name: AD831 Frequency mixer
- Size: 45*37mm
- Power supply: -+5V

Features:
- Double balanced mixer
- Low distortion
- Three order intercept point (IP3) +24dBm
- 10dBm 1db crash point
- Bandwidth:500MHz RF and LO input bandwidth
- Difference current 250MHz IF output
- DC-200MHz and above single end voltage IF output
- Lwo IO drive requirement: -10dBm
- Single power supply or dual power supply
- Direct current coupling when dual power supply
- User programmable power consumption

Package List:
- 1 x High Frequency Mixer Active Module
