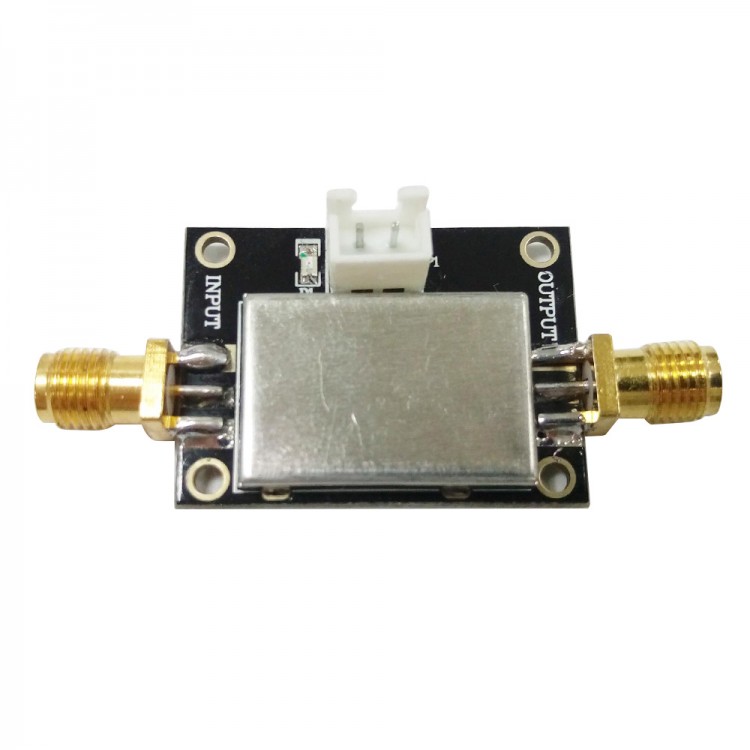

AD8313 Module Multistage Demodulation Logarithmic Amplifier 0.1-2.5GHz Logarithmic Detector Module
Specifications:
- Size: 31*23mm
- Power supply: 5V
Features:
- Operating frequency: 0.1 GHz to 3.5 GHz
- High dynamic range: 70 dB to + 3 dB
- High precision: + -1 dB (65dB, 1.9 GHz)
- Quick response: 40 ns (full range of typical values)
- Controller model with error output
- Adjust the proportion does not change with the power supply voltage and temperature
- Wide supply voltage range: 2.7 V to 5.5 V
- Low power consumption: 40 mW (3 V)
- Power saving characteristics: 60 mW (3 V)
Package List:
- 1 x Logarithmic Amplifier Module
