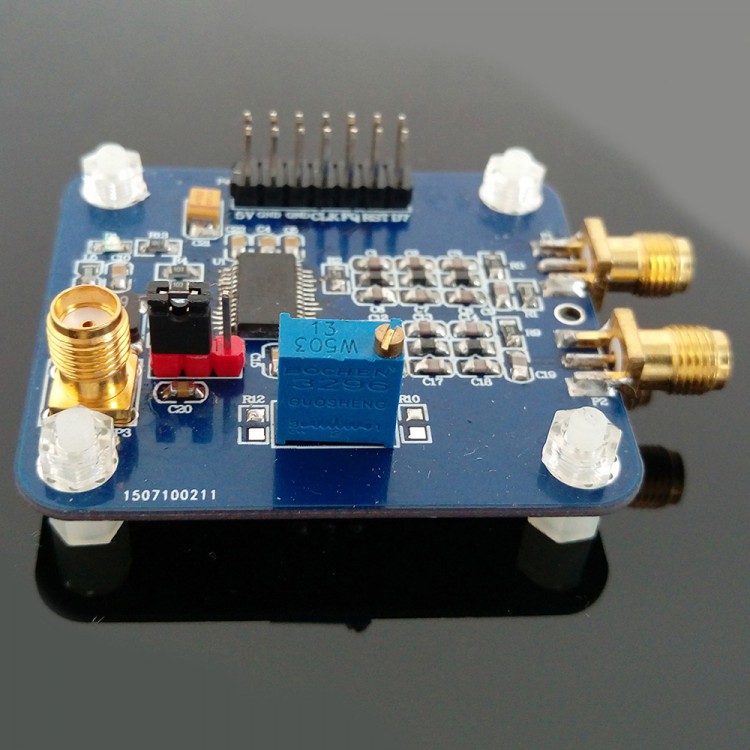

• AD9850 DDS Function Signal Generator Module Compatible with 9851 for DIY Arduino

AD9850 DDS Function Signal Generator Module Compatible with 9851 for DIY Arduino

Availability: In stock, usually dispatched in 1 business day

  • Price:$27.47
  • Price in reward points: 275 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $26.92 $26.37 $25.55 $24.45 Contact US
Quantity:

AD9850 DDS Function Signal Generator Module Compatible with 9851 for DIY Arduino

Specifications:

- Name: AD9850 DDS Function Signal Generator Module
- Size: 50*45mm
- Power supply: 5V
- 125 MHz clock rate, with an optional 6x reference clock multiplier
- High performance DAC and high speed comparator
- DAC SFDR >50 dB  (40 MHz AOUT )
- 32 bit frequency tuning word
- Simplified control interface: parallel byte or serial loading format
- Phase modulation capability
- 3.3V or 5V single power supply
- Low power consumption: 380 mW (125MHz 5V) 155mW (100MHz, 3.3V)
- Power saving function
- Ultra small 28 pin SSOP encapsulation
- Can output 2* sine wave and 2* square wave (only switch to one channel otuput)
- Frequency range: 0-60MHz
- 70MHz low pass filter
- Adopt 125MHz active crystal

Package List:
- 1 x AD9850 DDS Function Signal Generator Module
