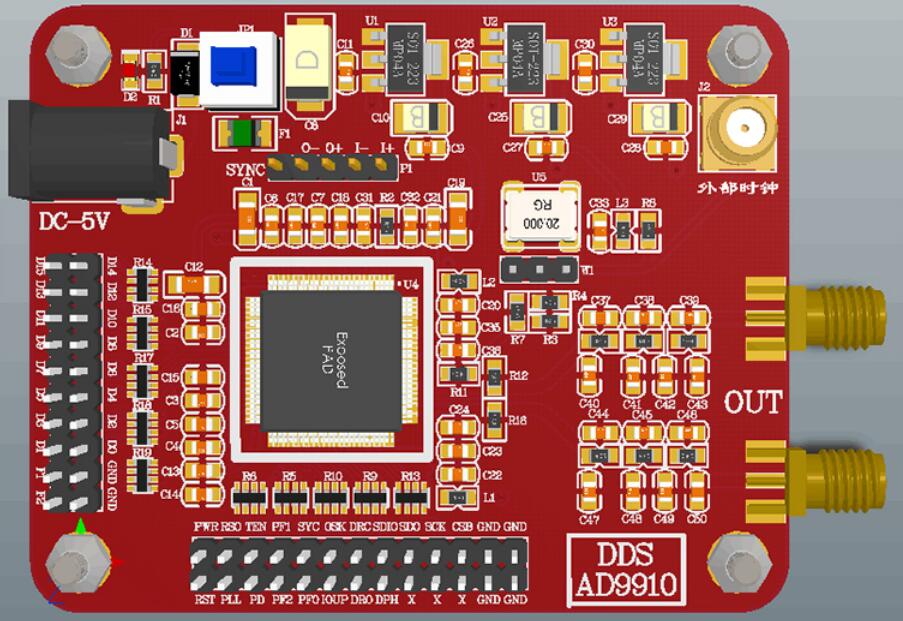

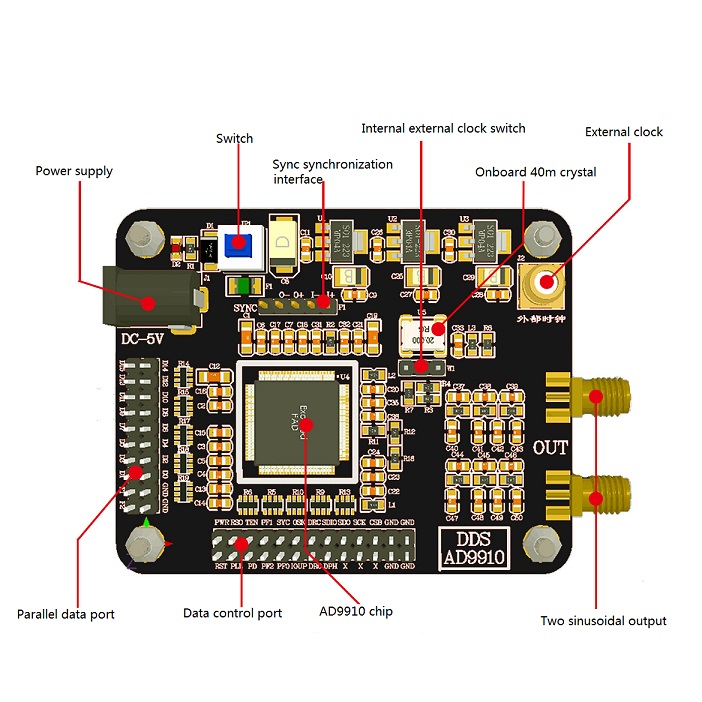

AD9910 DDS Module 14bit DAC 420M Output 1GSPS Samplign Rate Signal Generator
Specification:
- Size: 60*75mm
- Voltage: 5-9V (recommend 5V)
- Maximum otuput : 420M
- Tantalum capacitor filter on board
- AMS1117 ad power chip
Chip feature:
- 1 GSPS internal clock rate ( maximum 400MHz analog output)
- Built in 1GSPS, 14 bit DAC
- Frequency resolution: 0.23Hz or above
- Phase noise: <=-125 dBc/Hz@1Khz deviation (400MHz carrier)
- Dynamic performance: >80 dB narrowband SFDR
- Seriel input/ output (I/O) control
- Sin (X)/ (X) correction inverse sine wave filter
Package List:
- 1 x AD9910 DDS Module
