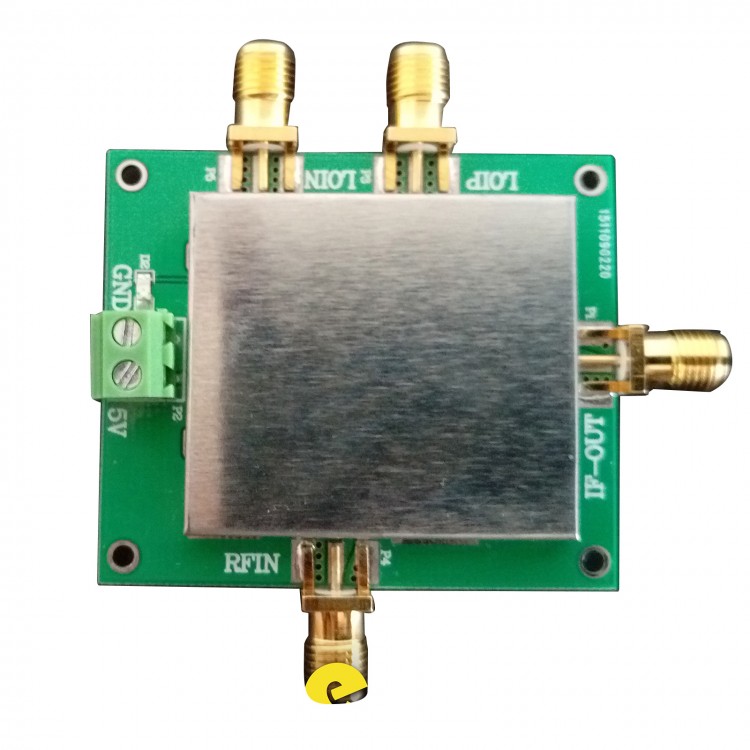

ADL5801 Double Balanced Active Mixer Module Up mixing Down Mixing for DIY
Specification:
- Name: ADL5801 Mixer Module
- Size: 50*42mm
- Voltage: 5V
Chip features:
- Broadband channel up /down frequency converter
- Power conversion gain: 1.5dB
- Broadband RF, local oscillator and IF port
- Side band noise index: 10dB
- Local oscillator drive: 0dBm
- RF output end of the vibration leak: -40dBm
- Single power supply: 5V@80mA
- Adjustable offset
- 4mm*4mm, 24 pin LFCSP encapsulation
- Input IP3: 27dBM
- Input P1db: 12dBm
Package List:
- 1 x ADL5801 Double Balanced Active Mixer Module
