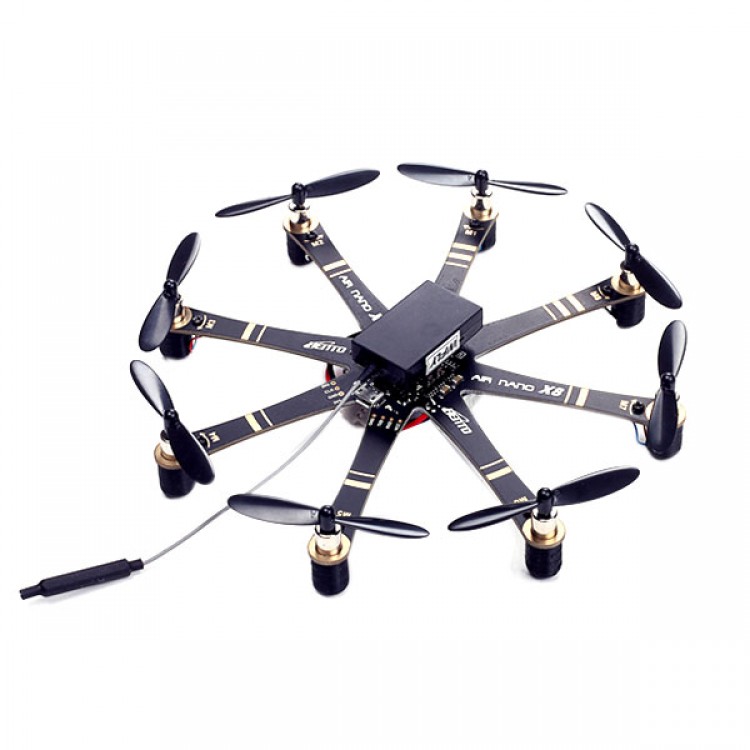

Air Nano X8 Opensource Octacopter STM32 MPU6959 HMC5883 Development Kits
- Wheelbase: 150 mm;
- The motor (x 8): 7 x 20 mm hollow cup;
- By the weight (including battery): 75g;
- Battery: 3.7V/650 mAh lithium battery.
- Flight time: >8 minutes.
- Remote control system: 2.4GHz.
- Remote control distance: <100 m;
- STM32F103RBT6 32bits single MCU, main frequency reaches as high as 72MHz
- MPU6050 gyroscope accelerometer, software IIC communication
- NRF24L01+PA power amplifying + precised designed PCB antenna, the transmission distance can reach 500M
- Adopting lipo battery charging smart manage chip, onboard Micro-USB interface,connect to PC end USB port then it can be charged, charging time 40mins
- With SWD download/ emulator interface, users are easy to learn and develop
- High speed 7*20mm hollow cup motor +55mm propeller, perfectly match, flying time can reach 7-10min
- Adopting advanced state stabilization calculation, IIR filter + four elements calculation, more stable flying
- Out of control mode
- Low voltage protection
- Breaking bar start and breaking rod stop mode
- Air Nano X8 weight: 75g, diagonal motor wheelbase is 150mm
- 8 channels of LED, unlock mode, flying mode, different mode is respond to different LED flashing frequency
- Onboard power supply switch
