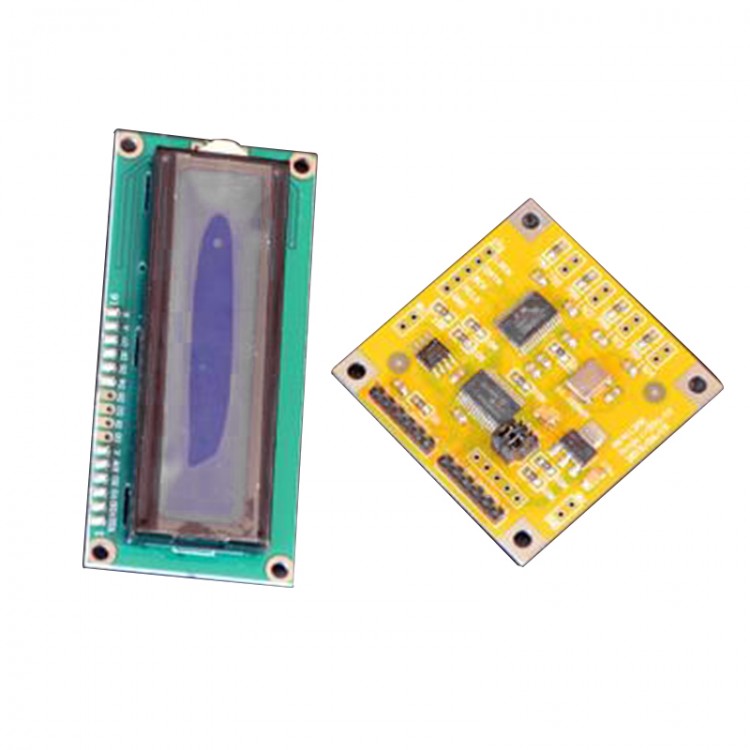

AK4113 DC5V Digital Receiver Board SPDIF to I2S LCD Better than WM8805 for DIY
Specification:
- PCB: 4.8*4.8cm
- Power supply: DC5V
- Support 4 channel SPDIF coaxial signal input
- Support 16-24bit 8-192K sampling rate
- 32-48K 256fs
- 88.2-192K 128fs
- Using LCD1602 indicates signal channel and sampling rate
- Output sampling rate changes with the change of the input signal
Note:
This board is the finished one and has been tested. It is necessary that you can DIY
Output format can be set :
| SITE: A | SITE: B | Output data format |
| 0 | 0 | Right-justified 16bit |
| 1 | 0 | Right-justified 24bit |
| 0 | 1 | Left justified |
| 1 | 1 | I2S |
Package included:
- 1 x AK4113 Digital Receiver Board
