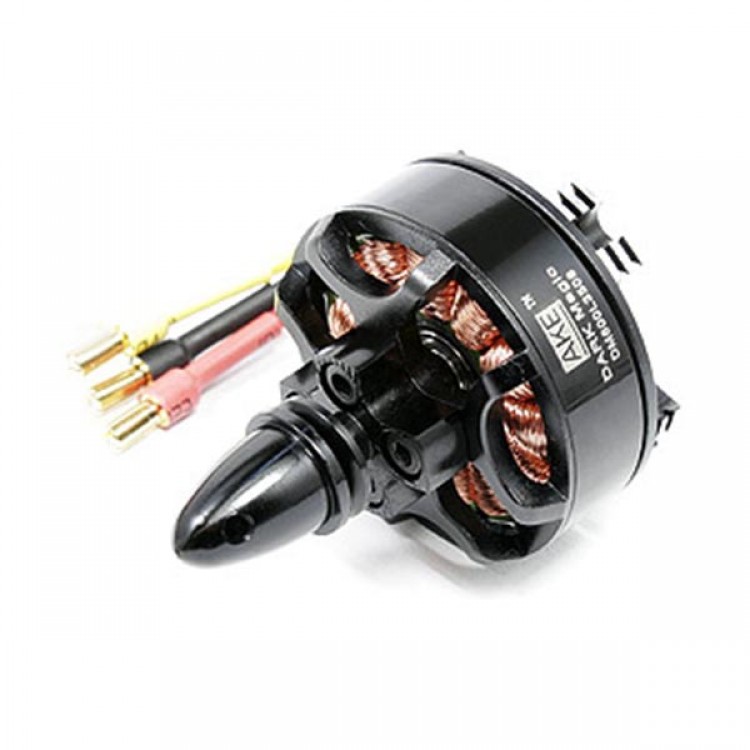

AKE DARKMagic DM600L3508-600KV Long Flying Time Multi Rotor Brushless Motor

Description:
- AKE DARKMagic DM600L3508 multi-axis aircraft Brushless Motor (600KV /long flying time):
- Great for X650V4/V8/Pro、F450/F550、SS4/SS6 etc
- Compatible with most 99% Brushless ESC.
- The motor perfectly compatible: Commercially available a variety of large and
- medium-sized multi-axis aircraft
- Recommended with: AKE HighSPEED PWM Series 30A/40A Brushless ESC high pressure.
- The motor vehicle suitable for large loads.
- Typical flying time: 27 minutes (4-axis, take-off weight: 3.1kg)

A.K.E DARK Magic DM600L3508 parameters:
- Stator diameter (Stator Diameter): 35mm
- Stator Thickness (Stator Thickness): 08mm
- Slot number (Stator Arms): 12
- Poles (Magnet Poles): 16
- Allow lithium Quantity (No. of Li-Po cells): 3S/4S
- Good paddle size (Prop size): 12 "-15"
- No-load speed (Motor KV): 600RPM / V
- Load Current (No-Load Current): 650mA / 12.77V
- Maximum current (MAX. Continuous Current): 21A
- Maximum power (MAX. Power): 240W
- Rotor diameter (Outside Diameter): 42.3mm
- The contour length (Body Length): 25mm
- Output shaft length (Overall Shaft Length): 29mm
- Output Shaft Diameter (Shaft Diameter): 3.0mm
- Weight (Weight): 93g (excluding paddle folder / with wires and plugs)

Package list:
- 1 x AKE DARKMagic DM600L3508-600KV
