Product Description:

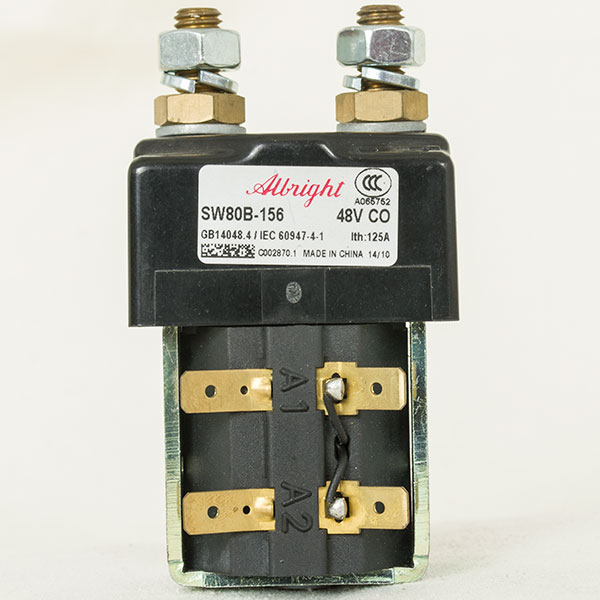

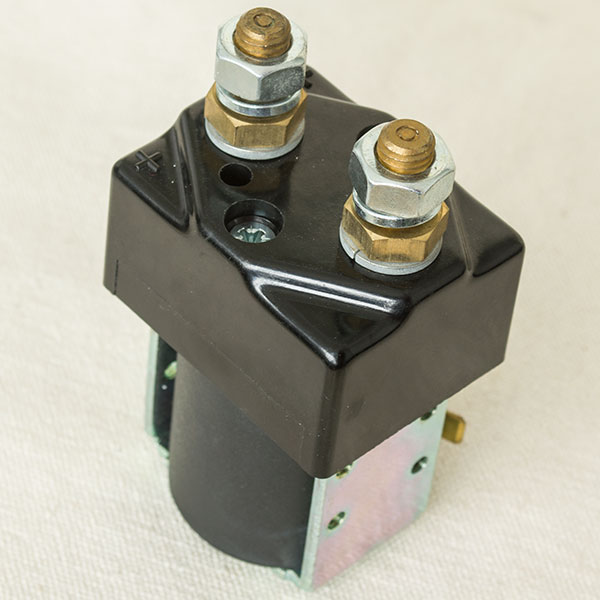

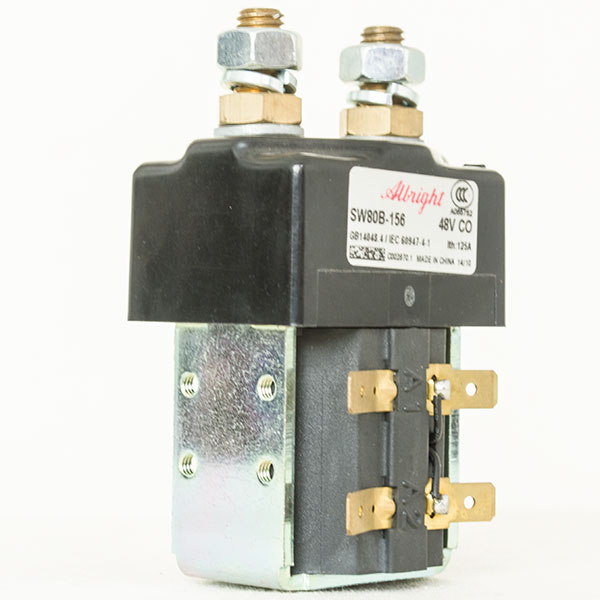

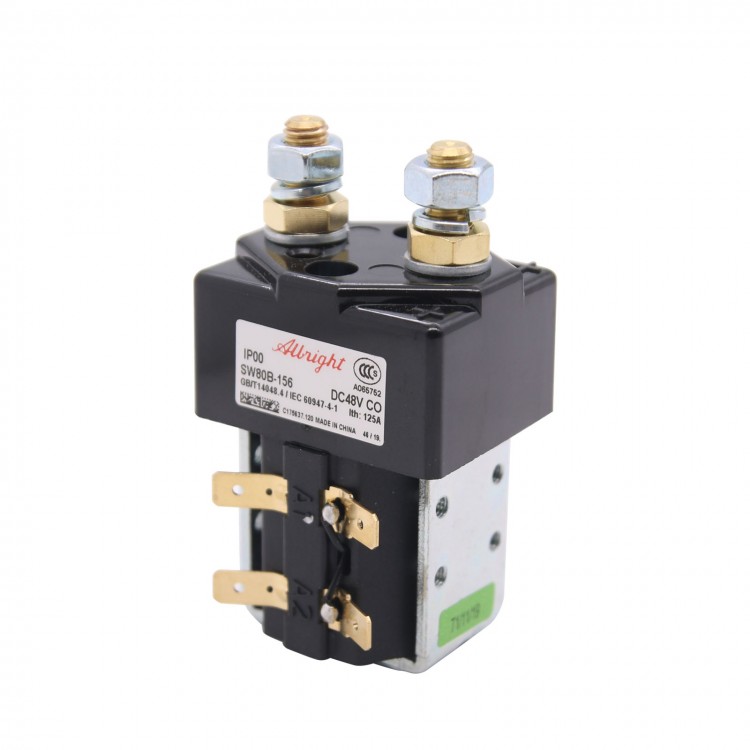

- 48V / 125A SPST DC Contactor
- Model: SW80B-156
SW80 Datesheet

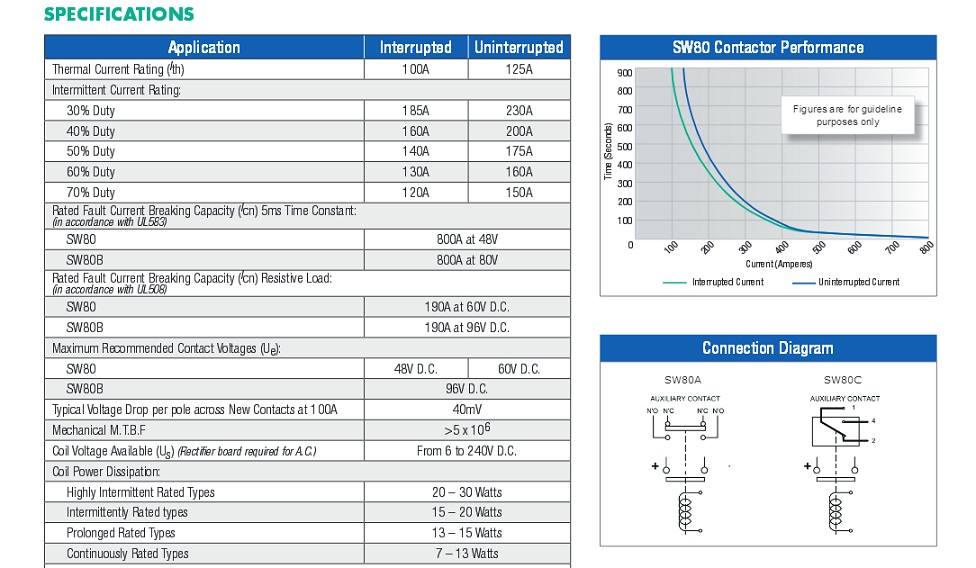

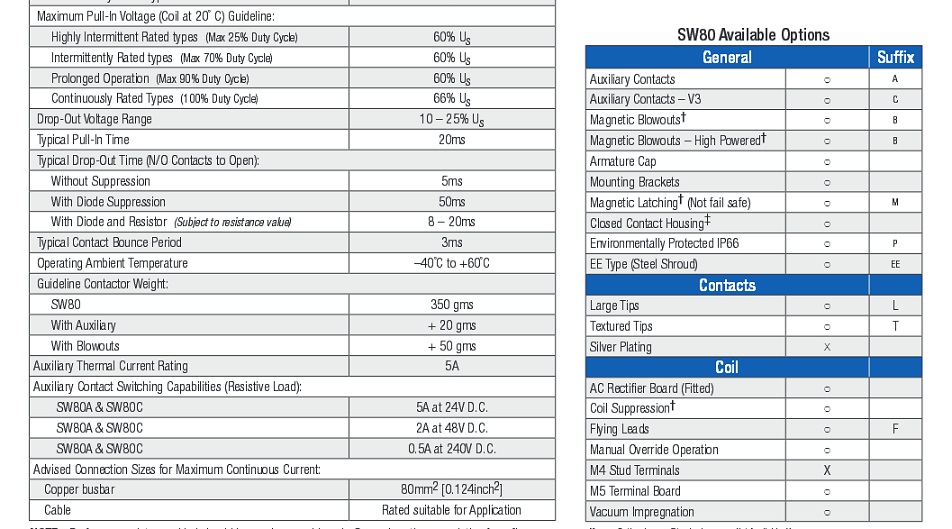

Specifications:
- Model: SW80B-156 (ZAPI B4SW11 / B4SW12)
- Working voltage: 48V (other voltage options 12V, 24V, 36V, 60V or 72V are available for SW80 & SW80B series DC contactors, for more details, please contact us )
- Ambient temperature: –40˚C to +60˚C
- Net weight: 0.35 kg
Notice: SW80B-156 is a Single Pole Single Throw contactor.
Albright DC Contactor Model List
Overview:

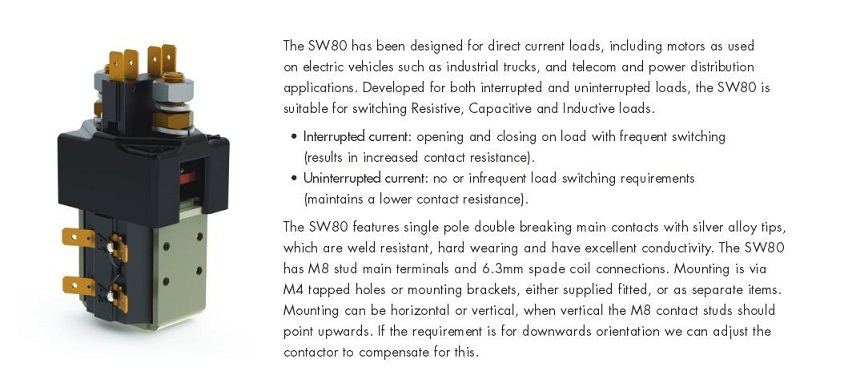

- The SW80 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks, and telecom and power distribution applications. Developed for both interrupted and uninterrupted loads, the SW80 is suitable for switching Resistive, Capacitive and Inductive loads.
- Interrupted current: opening and closing on load with frequent switching (results in increased contact resistance)
- Uninterrupted current: no or infrequent load switching requirements (maintains a lower contact resistance)

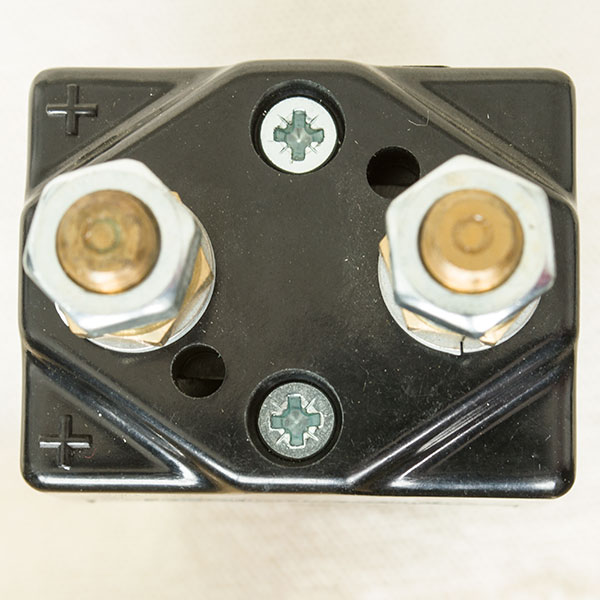

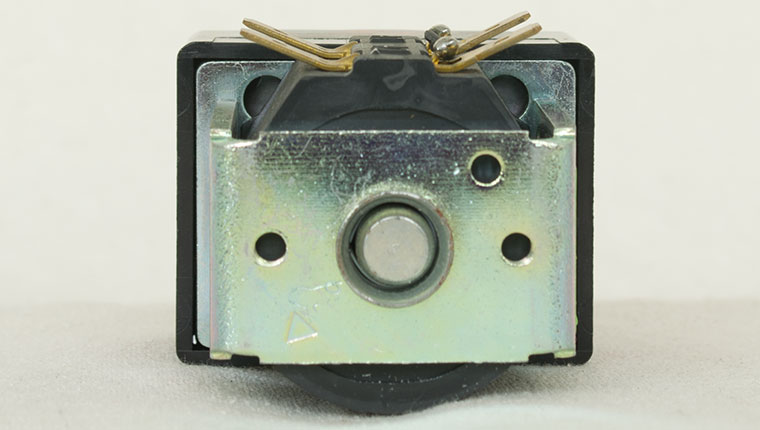

- The SW80 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes or mounting brackets, either supplied fitted, or as separate items. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards. If the requirement is for downwards orientation we can adjust the contactor to compensate for this.
- Dimensions: (attention: SW80B-156 has not the optional auxiliary contacts in the diagram below):
