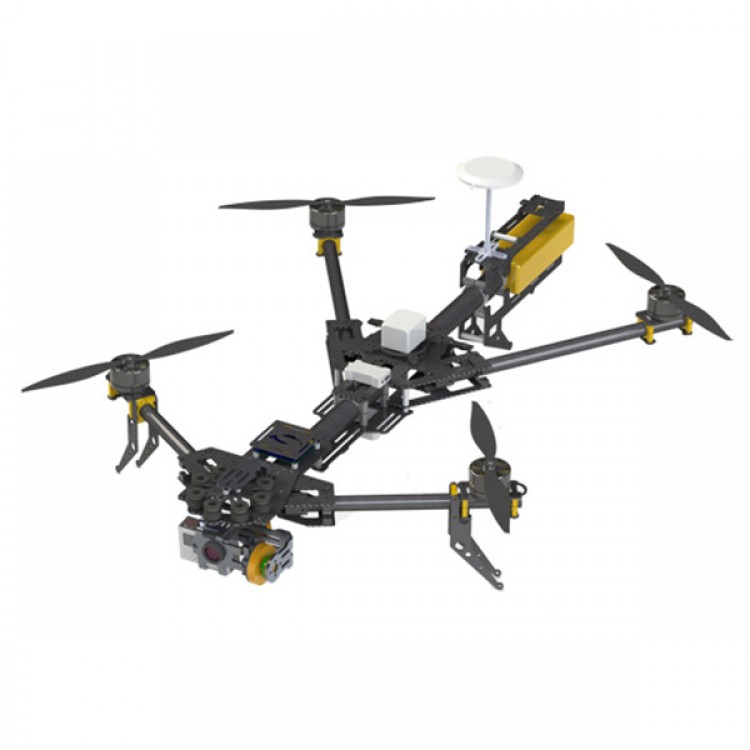

Alien Bumblebee Multirotor FPV Flyman Folding Carbon Frame Kit W/Brushless Gopro Gimbal
  • Alien Bumblebee Multirotor FPV Flyman Folding Carbon Frame Kit W/Brushless Gopro Gimbal
  • Alien Bumblebee Multirotor FPV Flyman Folding Carbon Frame Kit W/Brushless Gopro Gimbal
  • Alien Bumblebee Multirotor FPV Flyman Folding Carbon Frame Kit W/Brushless Gopro Gimbal
  • Alien Bumblebee Multirotor FPV Flyman Folding Carbon Frame Kit W/Brushless Gopro Gimbal
  • Alien Bumblebee Multirotor FPV Flyman Folding Carbon Frame Kit W/Brushless Gopro Gimbal
  • Alien Bumblebee Multirotor FPV Flyman Folding Carbon Frame Kit W/Brushless Gopro Gimbal
  • Alien Bumblebee Multirotor FPV Flyman Folding Carbon Frame Kit W/Brushless Gopro Gimbal
  • Alien Bumblebee Multirotor FPV Flyman Folding Carbon Frame Kit W/Brushless Gopro Gimbal
  • Alien Bumblebee Multirotor FPV Flyman Folding Carbon Frame Kit W/Brushless Gopro Gimbal
  • Alien Bumblebee Multirotor FPV Flyman Folding Carbon Frame Kit W/Brushless Gopro Gimbal

  • SKU:26528
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: Out of Stock     Reward Points: 39
  • Price:$389.90
  • Price in reward points: 3899
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $382.10 $374.30 $362.61 $347.01 Contact US

Alien Bumblebee Multirotor FPV Flyman Folding Carbon Frame Kit W/ Brushless Gopro Gimbal

Highlights
- The FLYMAN is a multi-rotor designed for aerial photograph which Pure carbon fiber structure, clever designs make assembly and configuration become especially easy and fast.
- Portable foldable frame and collapsible GPS Mount are conveniently portable for optimal user experiences.
- The brushless gimbal had 245 degree super vision which to create omnidirectional aerial view and high quality photograph.
- Combined with professional multi-rotor autopilot system.
- The FLYMAN will achieve hovering, cruising and other steady flight elements, which can be applied for aerial photography and other aero-modeling activities.


User manual download

Note:
This link only for a main frame (full carbon),and one set brushless gimbal(full set of gimbal,come with the gimbal motors and alexmos controller)

ARF Package(recommend configuration,not included)
Type SN Name PCS
Main Frame FA410001 IMU Mount Board 1
FA410002 16mm Motor Mount Board 4
FA410003 Simple Landing Gear 4
FA410004 M3*16mm Motor Mount Carbon Pad 4
FA410005 Front Upper Carbon Frame 1
FA410006  Front Bottom Carbon Frame 2
FA410007 Front Bottom Mount Carbon Plate 1
FA410008 Back Upper Carbon Frame 1
FA410009 Back Bottom  Carbon Pad 1
FA410010 25mm Motor Mount Carbon Pad 1
FA410011 16*236mm Front Carbon Tube 2
FA410012 16*323mm Back Carbon Tube 2
FA410013 25*234mm Link Main Fream Carbon Tube 1
FA410014 Battery Package Carbon Frame 1
FA410015 25*250mm Battery Balance Carbon Tube 1
FA410016 Front Upper intensive Carbon Frame 1
FA410017 Gimbal damping Upper Carbon Frame 1
FA410018 electrical installations Mount Carbon Pad 1
FA410019 Back Bottom Carbon frame 2
FA410020 Gimbal Control Panel Upper shell 1
BrushlessGimbal&Accessories FA410021 Brushless Gimbal Roll Arm 1
FA410022 Camera Mount Plate 1
FA410023 Gimble Cantilever Arm 1
FA410024 Camera Gravity Cross Plate  1
FA410025 4215 Motor for Brushless Gimbal 2
FA410026 Gimbal Control Panel & IMU Sensor 1
Screw & Parts Kit FA410027 16mm Tube Clip 4
FA410028 16mm C Type Tube Clip 8
FA410029 6mm Silicone Damper 4
FA410030 16mm CNC Tube Clip 10
FA410031 M3 Embedded Nut 4
FA410032 25mm Plastic Tube Clip 8
FA410033 10mm Silicone Damper  8
FA410034 Power Supply Hub 1
FA410035 M4*7*30MM Nylong Hex Bolt 12
FA410036 8mm M2.5 Countersun Head Screw 4
FA410037 6mm M2.5 Countersun Head Screw 20
FA410038 14mm M2.5 Countersun Head Screw 8
FA410039 30mm M2.5 Countersun Head Screw 28
FA410040 M2.5 Hexagon screws 24
FA410041 6mm M3 Nylong Screw 8
FA410042 Gimbal Roll and pitch Data Cables 2
FA410043 10mm M3 Plasstic Screw 8
FA410044 40mm M3 Cup Screw 26
FA410045 M3 Hexagon Self Locking Nut 30
FA410046 5mm Nylong Plastic Bolt 4
FA410047 10mm Nylong Plastic Bolt 8
FA410048 25mm Nylong Plastic Bolt 4
FA410049 M3 Plastic Nut 6
FA410050 30mm M3 Screw 4
FA410051 Black Plastic Cable Tie Several
FA410052 M3 Inner Hexagon Spanner 1
FA410053 IMU Foam Double Sided Adhesive Tape 1
FA410054 Sticker 1
FA410055 Landing Gear Sponge Tube 1
FA410056 T Type Slope Indicator 1
FA410057 Self Adhansive Tape 1
FA410058 Gopro3 Data Cable 1
FA410059 Video Transmitter JST Cable 1
FA410060 Signal Sheilding Cable 1
FA410061 20mm M2.5 Countersun Head Screw 4
FA410062 M2.5 shims  4
FA410063 M4*7*6mm Nylong Plastic Bolt 8
