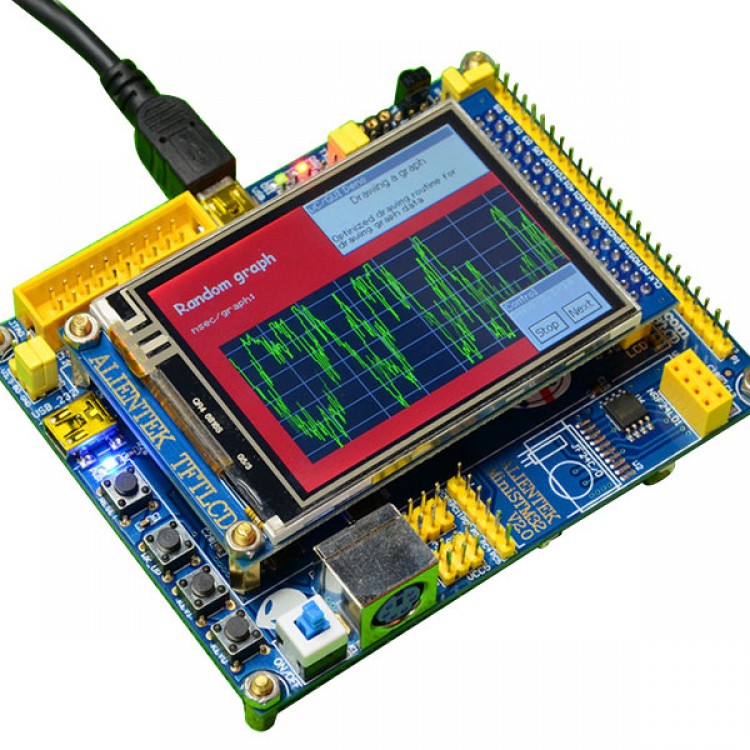

ALIENTEK STM32 Develop Board + 2.8 inch Touch Screen Surpass ARM7

Availability: In stock, usually dispatched in 1 business day

  • Price:$48.36
  • Price in reward points: 484 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $47.39 $46.43 $44.97 $43.04 Contact US
Quantity:

ALIENTEK STM32 Develop Board + 2.8 inch Touch Screen Surpass ARM7

Description:

- Size: 10*8cm
- STM32F103RCT6
- FLASH: 256K. SRAM: 48K
- 2.8/3.5/7/2.4 inch LCD interface
- OLED display screen interface
- Three LED, four press button, PS2 mouse interface
- Storage type: 8MB SPI FLASH (W25Q64)
- EEPROM 24C02, SD card interface
- Communication: USB serial port, 2.4G wireless interface, GSM/ GPRS interface, serial port WIFI interface, serial port Ethernet interface, infrared receiving
- Power supply type: one RTC back up battery base, two USB take power port, one group 5V power supply interface port, one group 3.3V power supply interface
- Debug download: JTAG/SWD interface , one USB to TTL serial port
