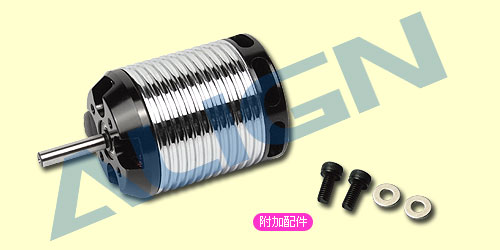

ALIGN 450MX Brushless Motor(1700KV) RCM-BL450MX HML45M02
  • ALIGN 450MX Brushless Motor(1700KV) RCM-BL450MX HML45M02
  • ALIGN 450MX Brushless Motor(1700KV) RCM-BL450MX HML45M02
  • ALIGN 450MX Brushless Motor(1700KV) RCM-BL450MX HML45M02
  • ALIGN 450MX Brushless Motor(1700KV) RCM-BL450MX HML45M02
  • ALIGN 450MX Brushless Motor(1700KV) RCM-BL450MX HML45M02
  • ALIGN 450MX Brushless Motor(1700KV) RCM-BL450MX HML45M02
  • ALIGN 450MX Brushless Motor(1700KV) RCM-BL450MX HML45M02

  • SKU:24768
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 5
  • Price:$52.90
  • Price in reward points: 529
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $51.84 $50.78 $49.20 $47.08 Contact US

ALIGN 450MX Brushless Motor(1700KV) RCM-BL450MX HML45M02

ALIGN 450MX Brushless Motor(1700KV) RCM-BL450MX HML45M02
ALIGN 450MX Brushless Motor(1700KV) RCM-BL450MX HML45M02

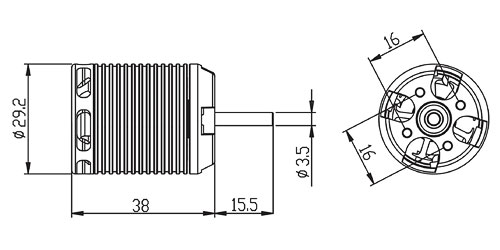

Specification Drawing:
ALIGN 450MX Brushless Motor(1700KV) RCM-BL450MX HML45M02

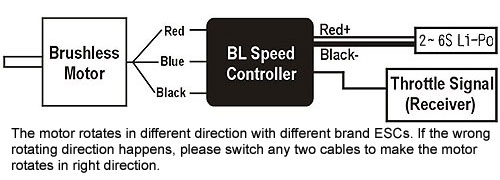

Wiring Schematic Drawing:
ALIGN 450MX Brushless Motor(1700KV) RCM-BL450MX HML45M02
ALIGN 450MX Brushless Motor(1700KV) RCM-BL450MX HML45M02

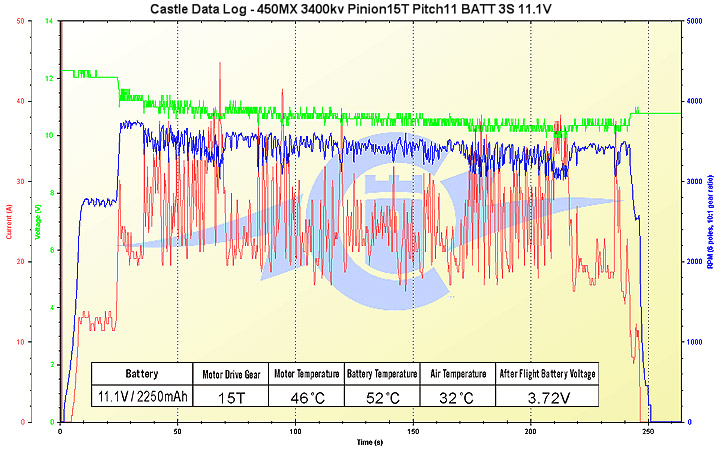

Test Data Graph:450MX(3400KV),15T,BATT 3S 11.1V ,3D Flight Record
ALIGN 450MX Brushless Motor(1700KV) RCM-BL450MX HML45M02

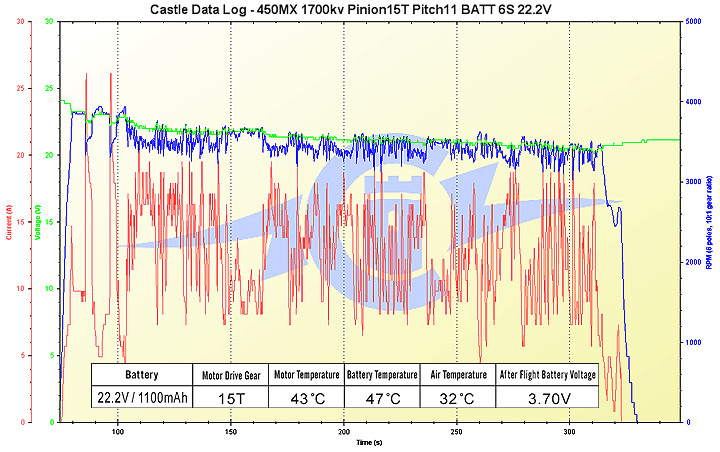

Test Data Graph:450MX(1700KV),15T,BATT 6S 22.2V ,3D Flight Record
ALIGN 450MX Brushless Motor(1700KV) RCM-BL450MX HML45M02

Features:

- The 450MX motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.
- The 450MX motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.
- Maintenance free, high torque, high efficiency, low temperature variant, stable and quiet.
- Japanese made high-speed ball bearings, powerful magnetic outrunner rotor.
- Battery:22.2v , 1100~1200mAh.
- In Continuation of 450MX's high efficiency, low temperature, and high torque advantages, 450MX(1700KV) utilizes 6S battery as power foundation. Not only does the current drop by 10 amps, battery and ESC exhibit even lower temperatures. The enormous power output makes you want to "hold on" to the controls! This is the premier product for those in search of the ultimate 3D power.
- Even for the none 3D pilots, 450MX 6S motor utilizes less than 5 amps at hover. Not only does this require smaller C-rating packs, the lower temperature extends the battery life at the same time. Charging time basically is cut in half. These advantages makes this an ideal motor for just about everyone.

Specification:

Input voltage:  DC7.4-22.2V 2-6cell Li-Po Max continuous current: 30A/45A(5sec)
Max output power:  Approx. 650w/970W(5sec) KV value: 1700KV
Dimension:  spindle 3.5x29.2x38mm Weight: Approx. 83g

Accessories:

- Socket button head screw(M2.5X6mm)X2
- Washer(Φ2.6XΦ5.8X0.6mm)X2
- ALIGN standard 3mm gilt terminal x 3 set
