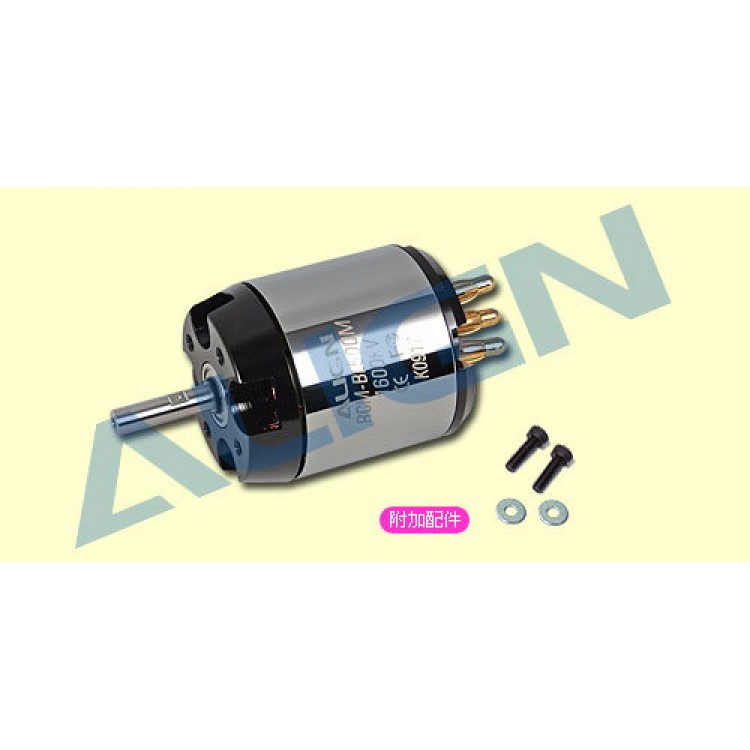

ALIGN 500M Helicopter Brushless Motor(1600KV) RCM-BL500M HML50M01

Availability: In stock, usually dispatched in 1 business day

  • Price:$88.90
  • Price in reward points: 889 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $87.12 $85.34 $82.68 $79.12 Contact US
Quantity:

ALIGN 500M Brushless Motor(1600KV) RCM-BL500M HML50M01

ALIGN 500M Brushless Motor(1600KV) RCM-BL500M HML50M01
Specification Drawing:
ALIGN 500M Brushless Motor(1600KV) RCM-BL500M HML50M01
Wiring Schematic Drawing:
ALIGN 500M Brushless Motor(1600KV) RCM-BL500M HML50M01
ALIGN 500M Brushless Motor(1600KV) RCM-BL500M HML50M01

Features:

- The 500M motor features shelterless design to create the advantages of heat release and low temperature variant. The extended diameter for the rotor make it even more efficiency and high torque output.
- The 500M motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.
- Maintenance free, high torque, high efficiency, stable and quiet.
- High-speed ball bearings, powerful magnetic outrunner rotor.
- Suitable for Trex 500 helicopters. Suggested motor pinion gear: 12T for normal flights and 13T for 3D flights.

Specification:

Input voltage:  DC11.1V-22.2V 3-6cell Li-Po Max continuous current: 60A/90A(5sec)
Max output power:  1260W/1890W(5sec) KV value: 1600KV
Dimension:   spindle 5x36x61.1mm Weight: 205g (prox.)

Accessories:

- Socket screw(M3X10)X2
- Washer(Φ3XΦ8X1)X2 plus
- ALIGN standard 4mm gilt terminal x 3set(Max. current 80A)
