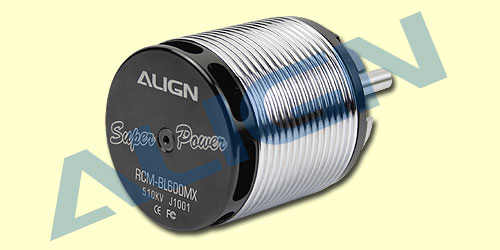

ALIGN 600MX Brushless Motor(510KV) RCM-BL600MX HML60M03

Availability: In stock, usually dispatched in 1 business day

  • Price:$136.90
  • Price in reward points: 1369 Reward Points: 14
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $134.16 $131.42 $127.32 $121.84 Contact US
Quantity:

ALIGN 600MX Brushless Motor(510KV) RCM-BL600MX HML60M03

ALIGN 600MX Brushless Motor(510KV) RCM-BL600MX HML60M03
ALIGN 600MX Brushless Motor(510KV) RCM-BL600MX HML60M03

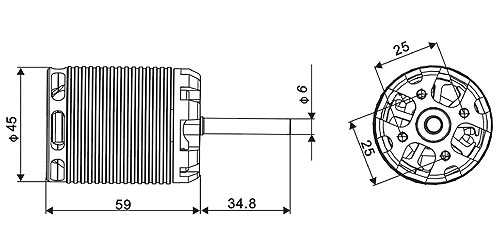

Specification Drawing:
ALIGN 600MX Brushless Motor(510KV) RCM-BL600MX HML60M03

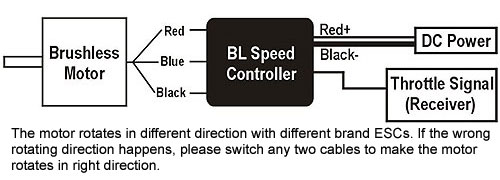

Wiring Schematic Drawing:
ALIGN 600MX Brushless Motor(510KV) RCM-BL600MX HML60M03
ALIGN 600MX Brushless Motor(510KV) RCM-BL600MX HML60M03

Features:

- The 600MX motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.
- The 600MX motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.
- Maintenance free, high torque, high efficiency, stable and quiet.
- High-speed ball bearings, powerful magnetic outrunner rotor.

Specification:

Input voltage:  DC11.1V-50.4V Max continuous current: 75A/125A(5sec)
Max output power:  3300W/5500W(5sec) KV value: 510KV
Dimension:  spindle Φ6xΦ45x59mm Weight: 340g (prox.)

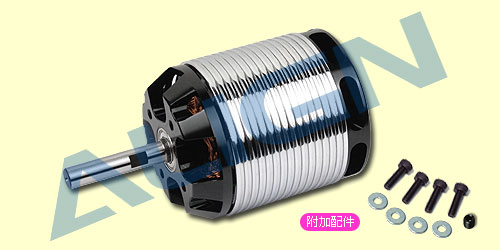

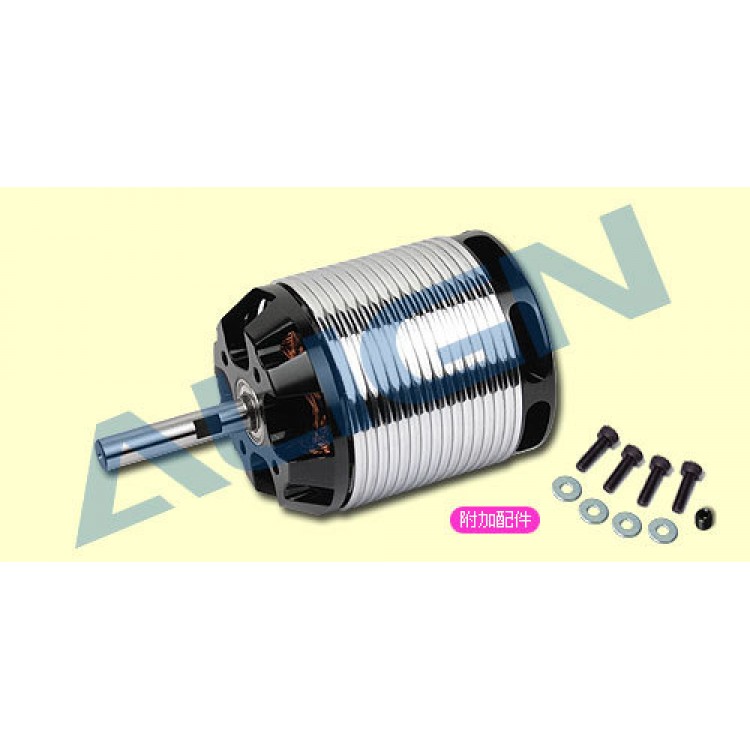

Accessories:

- Socket screw(M3X10)X4
- Washer(Φ3XΦ8X1)X4
- ALIGN standard 4mm gilt terminal x 3
- M4 set screw x 1
