ALIGN 650L Brushless Motor(1220KV) RCM-BL650L KX860024A
  • ALIGN 650L Brushless Motor(1220KV) RCM-BL650L KX860024A
  • ALIGN 650L Brushless Motor(1220KV) RCM-BL650L KX860024A
  • ALIGN 650L Brushless Motor(1220KV) RCM-BL650L KX860024A
  • ALIGN 650L Brushless Motor(1220KV) RCM-BL650L KX860024A
  • ALIGN 650L Brushless Motor(1220KV) RCM-BL650L KX860024A

  • SKU:24772
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 12
  • Price:$115.90
  • Price in reward points: 1159
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $113.58 $111.26 $107.79 $103.15 Contact US

ALIGN 650L Brushless Motor(1220KV) RCM-BL650L KX860024A

ALIGN 650L Brushless Motor(1220KV) RCM-BL650L KX860024A

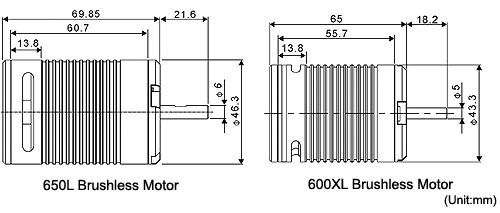

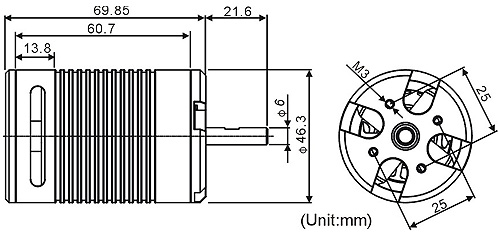

Specification Drawing:
ALIGN 650L Brushless Motor(1220KV) RCM-BL650L KX860024A
ALIGN 650L Brushless Motor(1220KV) RCM-BL650L KX860024A

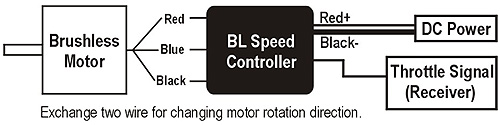

Wiring Schematic Drawing:
ALIGN 650L Brushless Motor(1220KV) RCM-BL650L KX860024A
ALIGN 650L Brushless Motor(1220KV) RCM-BL650L KX860024A

Features:

- New developed 650L brushless motor with high efficiency and high toruqe. Under 6cell Li-Po battery, it can squeeze out more 30% torque. The new motor features power-saving for general flight and , sustained power-output for extreme 3D flight.
- Maintenance free, high torque, high efficiency, stable and quiet.
- Japanese made high-speed ball bearings, powerful magnetic outrunner rotor.
- These new brushless motors are designed with a new radiator system. The motors are built with an integrated cooling fan and has air ingress/egress vents, circulating cool air inside the rotor continuously. The motors efficiently lower operating temperature.

Specification:

Input voltage:  DC11.1-22.2V 3-6cell Li-Po Max continuous current: 70A/100A(5sec)
Max output power:  Approx. 1600W/2240W(5sec) KV value: 1220KV
Dimension:  spindle 6x46.3x69.85mm Weight:   400g

Accessories:

- Socket screw(M3X10)X2
- Washer(Φ3XΦ8X1)X2 plus
- ALIGN standard 4mm gilt terminal x 3set(Max. current 80A)
