ALIGN 750MX Brushless Motor(530KV) RCM-BL750MX HML75M01
  • ALIGN 750MX Brushless Motor(530KV) RCM-BL750MX HML75M01
  • ALIGN 750MX Brushless Motor(530KV) RCM-BL750MX HML75M01
  • ALIGN 750MX Brushless Motor(530KV) RCM-BL750MX HML75M01
  • ALIGN 750MX Brushless Motor(530KV) RCM-BL750MX HML75M01
  • ALIGN 750MX Brushless Motor(530KV) RCM-BL750MX HML75M01

  • SKU:24777
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 17
  • Price:$167.80
  • Price in reward points: 1678
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $164.44 $161.09 $156.05 $149.34 Contact US

ALIGN 750MX Brushless Motor(530KV) RCM-BL750MX HML75M01

ALIGN 750MX Brushless Motor(530KV) RCM-BL750MX HML75M01
ALIGN 750MX Brushless Motor(530KV) RCM-BL750MX HML75M01

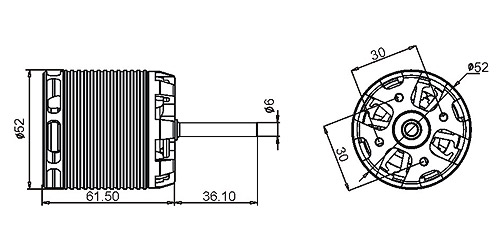

Specification Drawing:
ALIGN 750MX Brushless Motor(530KV) RCM-BL750MX HML75M01

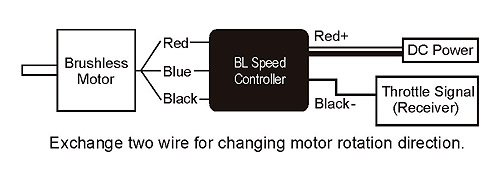

Wiring Schematic Drawing:
ALIGN 750MX Brushless Motor(530KV) RCM-BL750MX HML75M01
ALIGN 750MX Brushless Motor(530KV) RCM-BL750MX HML75M01

Features:

- 750MX(530KV) motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.
- The 750MX(530KV) motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.
- Maintenance free, high torque, high efficiency, stable and quiet.
- High-speed ball bearings, powerful magnetic outrunner rotor.
- Suitable for T-REX 700E helicopters.
750MX (530kv) motor is suitable for use with speed governor function on the speed controller. Start with setting the governor so that head speed is at around 2200RPM, and adjust according to individual needs. For safety reasons, please do not set too high of head speed.

Specification:

Input voltage:  DC11.1V-50.4V Max continuous current: 100A/165A(5sec)
Max output power:  4400W/7260W(5sec) KV value: 530KV
Stator Arms: 12 Magnet Poles: 10
Dimension:   6x52x61.5mm Weight: 452g

Accessories:

- Socket screw(M4X10)X4
- Washer(Φ4XΦ10X1)X4
- 4mm gilt terminal x 3
