ALIGN 700MX Brushless Motor(470KV) RCM-BL700MX HML70M04

ALIGN 700MX Brushless Motor(470KV) RCM-BL700MX HML70M04
ALIGN 700MX Brushless Motor(470KV) RCM-BL700MX HML70M04

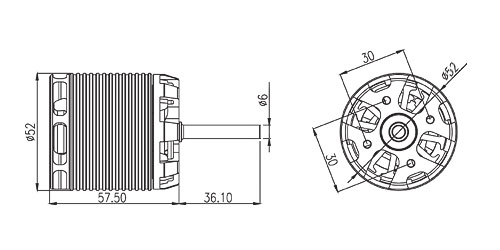

Specification Drawing:
ALIGN 700MX Brushless Motor(470KV) RCM-BL700MX HML70M04

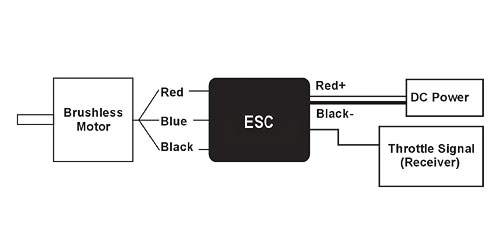

Wiring Schematic Drawing:
ALIGN 700MX Brushless Motor(470KV) RCM-BL700MX HML70M04
ALIGN 700MX Brushless Motor(470KV) RCM-BL700MX HML70M04

Features:

- 700MX(470KV) motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.
- The 700MX(470KV) motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.
- Maintenance free, high torque, high efficiency, stable and quiet.
- High-speed ball bearings, powerful magnetic outrunner rotor.
- Suitable for T-REX 700E helicopters.
Specifically designed for F3C type of flying, the 700MX (470KV) motor has broader speed range to maximize efficiency of the motor and speed controller. In addition, the lower 470KV results in lower heat and current build up.
- Suitable for Castle、Kontronik HV series 80A and up ESCs.
- Both “Fixed Endpoints” or “Governor Mode” can be selected when used with Castle ESC’s.
- We recommend setting Mode4(Heli Mode) or Mode11(Heli Mode with constant RPM control) when used with Kontronik ESC’s.

Specification:

Input voltage:  DC11.1V-50.4V  Max continuous current:   90A/150A(5sec)
Max output power:  4000W/6600W(5sec) KV value: 470KV
Stator Arms: 12 Magnet Poles: 10
Dimension:  spindle Φ6xΦ52x57.5mm Weight: 405g (prox.)

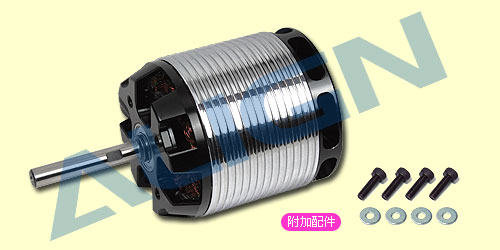

Accessories:

- Socket screw(M4X10)X4
- Washer(Φ4XΦ10X1)X4
- 4mm gilt terminal x 3
