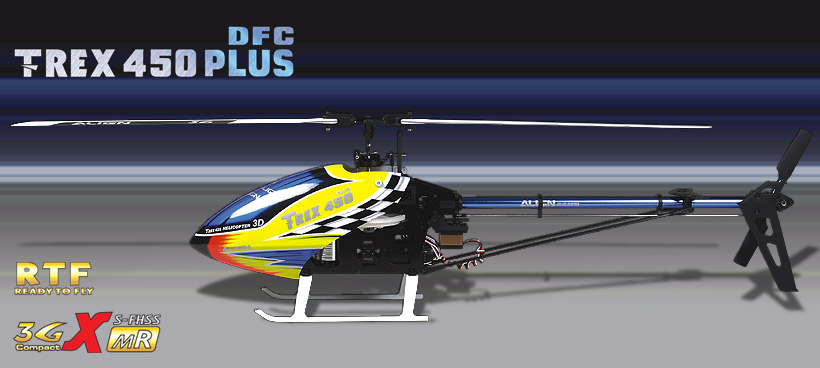

ALIGN T-REX 450 Plus DFC Super Combo RH45E01XW 6CH Flybarless Helicopter RTF 2.4 Ghz
The package is about 4.1kg,we will send you via Fedex/DHL/EMS/UPS
|Focus Shot1(Equipped with the low CG DFC rotor head, exhibits exhilarating 3D performance and unimaginable flight speed.)||Focus Shot2(New 450DFC CCPM Swashplate and main shaft bearing block)||Focus Shot3(Brand new battery mount with integrated ESC mount)|
|Focus Shot4(Newly designed 4 piece upper / lower plate frame system)||Focus Shot5(Newly designed servo mount & high precision helical main gear)||Focus Shot6(Newly designed rudder servo mount & dedicated rudder gyro mounting platform)|
|Focus Shot7(New style frame base plate with access window to gyro adjustment)||Focus Shot8(Hoop style horizontal fin mount with longer tail boom supports)||Focus Shot9(High precision tail pitch control assembly)|
|Focus Shot10(ALIGN T6-2.4GHz transmitter )||Focus Shot11(Balance Charger RCC-3SX)||Focus Shot12(450MX Brushless Motor(3400KV))|
|Focus Shot13(3GX MR Flybarless System)||Focus Shot14(325D 3G Carbon Fiber Blades)||Focus Shot15(DS415M Digital Servo)|
|Focus Shot16(DS425M Digital Servo)||Focus Shot17(RCE-BL35P 35A Brushless ESC / 3S1P 11.1V 2200mAh/30C)||Focus Shot18(1.5V AA Zinc-Carbon Battery)|
|Instruction:||Specification(3GX MR) :|
●T-REX 450 has been the ideal choice for entry level R/C helicopters. To cater to the beginner enthusiasts, Align first introduced RTF (Ready to Fly) T-REX 450 PLUS.? Now, Align presents a new flybarless version:?T-REX 450 PLUS DFC. ?Complete with Align T6 2.4G transmitter and newly released 3GX MR flybarless system, this fully assembled helicopter can be flown immediately just by plugging in a charged battery, allowing the pilot to bypass assembly and adjustment process.
●The helicopter utilizes DFC rotor head assembly, paired with 3GX MR flybarless system optimized for T-REX 450 PLUS flight characteristics. ?Without any adjustment or tuning, this combo will provide optimal stability suitable for pilots of all levels.
●For those enthusiasts who wish to fine tune 3GX MR even further, it can be done through a few simple steps. In addition, 3GX MR has a FHSS 2.4GHz receiver built in, providing an all in one package.
●Align T6 R/C system utilizes Futaba 2.4G S-FHSS frequency hopping 6 channel transmitter, with complete helicopter functions such as throttle/pitch curve, stunt mode switch, dual rate and exponential adjustment, etc.
●With the addition of the brand new 3GX MR, the T-REX 450 PLUS DFC pushes past the performance limitation of flybar helicopter, improving both stability and 3D performance, while maintaining a down to earth price level
●Helicopter and transmitter are factory assembled and tuned RTF version. Plug in a battery and experience immediate flight gratification.
●Align T6 R/C system utilizes Futaba 2.4G S-FHSS frequency hopping 6 channel transmitter, with complete helicopter functions along with 15 model memory.
●Built in normal flight mode and stunt flight mode, with two step dual rate settings.
●Equipped with the low CG DFC rotor head, effectively reduce wind resistance during flight, providing the most direct and precise control feel back to the pilot, and exhibits exhilarating 3D performance and unimaginable flight speed.
●Equipped with newly released 3GX MR flybarless system, with FHSS 2.4GHz receiver for built in receiver function, for simpler and more direct setup, with setting optimized for T-Rex 450 Plus DFC, resulting in more stable and more preferable control feel than ever before.
●Four piece frame plate design with imbedded servo mounting platform for fast servo install/removal without mounting nuts.
●Narrow lower frame plate and base plate design to strengthen rigidity and improve flight agility.
●Specially designed in-between frame rudder servo mount for centralized CG location to benefit 3D flying, while minimizing crash damages to rudder servo
●Equipped with MX series high efficiency brushless motor, with dramatically improved cooling efficiency for excellent power output.
●Equipped with new style REC-BL35P brushless controller featuring step-less adjustable BEC voltage between 5V to 6V .
●Dedicated rudder gyro mounting platform to isolate vibration from tail transmission, improving gyro performance.
●Newly designed battery mounting platform with integrated ESC mount for streamlined mounting of electronics.
●High precision tail pitch control assembly with aesthetically pleasing and functional design. Weighted tail blade grips effectively increases smoothness of rudder pitch action.
●New style aerodynamic canopy airbrushed with colorful graphics.
●Equipped with 3S 2200mAh 30C lithium polymer battery and charger capable of 2A fast charge rate.
Users must have a certain concept of security to operate the R/C helicopters.
Be sure to read and comply with related safety notes of instruction manual before flying.
●Operating Temperature:-10~60 degree
●Suitable Voltage Range:DC 3.5~8.4V
●Operating current consumption:<100mA @4.8V
●X and Y axis Operating Angle Range:-300~+300 degree
●Z axis Operating Angle Range:-600~+600 degree
●Size:37.4x20.5x12.6 mm Size
●Main Rotor Diameter: 715mm
●Tail Rotor Diameter: 158mm
●Motor Drive Gear: 11T
●Main Drive Gear: 112T
●Autorotation Tail Drive Gear: 106T
●Tail Drive Gear: 25T
●Drive Gear Ratio: 1:10:4.24
●Flying Weight: Approx. 584g
●Outer carton:56x31x28cm ,24sets/ctn
●T-REX 450 Plus DFC Kit Set X1 set
