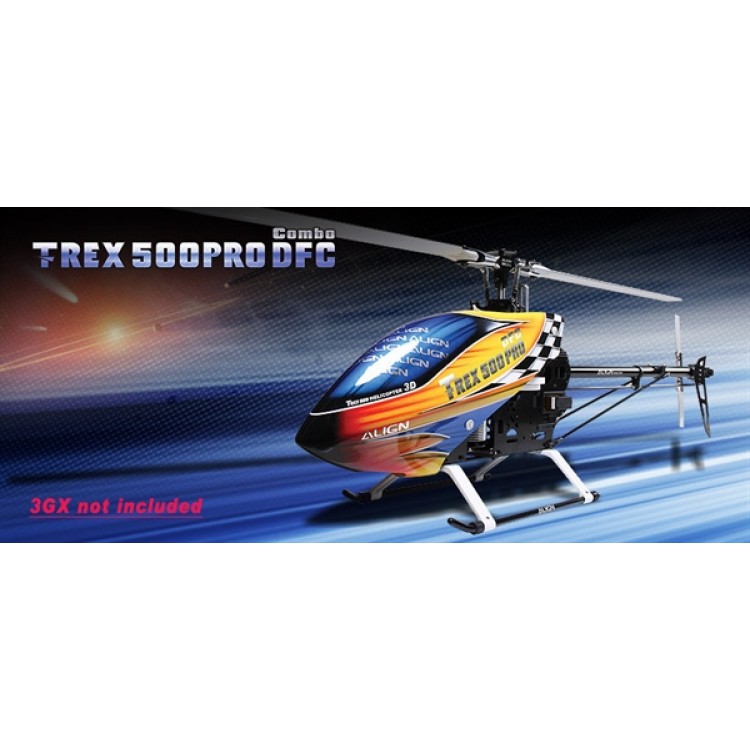

ALIGN T-REX 500 PRO DFC Helicopter Combo RH50E02XW

Availability: Out Of Stock

  • Price:$659.17
  • Price in reward points: 6592 Reward Points: 66
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $645.99 $632.80 $613.03 $586.66 Contact US
Quantity:

ALIGN T-REX 500 PRO DFC Combo RH50E02XW

Product:
ALIGN T-REX 500PRO DFC 套裝版 RH50E02XW
Focus Shot1(Equipped with the low CG DFC rotor head, exhibits exhilarating 3D performance and unimaginable flight speed,New 500DFC CCPM Metal Swashplate and metal main shaft bearing block) Focus Shot2(Newly designed electronic equipments and ESC mount) Focus Shot3(Unique carbon composite technology which effectively strengthen the weak areas and simplify electronics installation)
ALIGN T-REX 500PRO DFC 套裝版 RH50E02XW
ALIGN T-REX 500PRO DFC 套裝版 RH50E02XW
ALIGN T-REX 500PRO DFC 套裝版 RH50E02XW
Focus Shot4(Uses high precision slant tooth (helical) main gear, with higher load sustainability and lower noise output.) Focus Shot5(Newly Metal Anti Rotation Bracket) Focus Shot6(Newly designed Gyro and Receiver mount)
ALIGN T-REX 500PRO DFC 套裝版 RH50E02XW
ALIGN T-REX 500PRO DFC 套裝版 RH50E02XW
ALIGN T-REX 500PRO DFC 套裝版 RH50E02XW
Focus Shot7(Brand new carbon tail control pushrod assembly) Focus Shot8(High efficiency shaft tail drive system,High quality new tail gearbox design, combined with new dual point mounted tail pitch control assembly ) Focus Shot9(500MX Brushless Motor(1600KV)
ALIGN T-REX 500PRO DFC 套裝版 RH50E02XW
ALIGN T-REX 500PRO DFC 套裝版 RH50E02XW
ALIGN T-REX 500PRO DFC 套裝版 RH50E02XW
Focus Shot10(425 3G Carbon fiber blades) Focus Shot11(DS515M Digital servo) Focus Shot12(DS525M Digital servo)
ALIGN T-REX 500PRO DFC 套裝版 RH50E02XW
ALIGN T-REX 500PRO DFC 套裝版 RH50E02XW
ALIGN T-REX 500PRO DFC 套裝版 RH50E02XW
Focus Shot13(RCE-BL70G Brushless ESC)
ALIGN T-REX 500PRO DFC 套裝版 RH50E02XW
Specification(T-REX 500 PRO DFC) : Specification(T-REX 500 PRO DFC) :

●Features

●Equipped with the low CG DFC rotor head, effectively reduce wind resistance during flight, providing the most direct and precise control feel back to the pilot, and exhibits exhilarating 3D performance and unimaginable flight speed.
●Unique carbon composite technology which effectively strengthen the weak areas and simplify electronics installation.
●Servos can be mounted directly onto frame without mounting nuts.
●Rear in-frame rudder servo mount design for centralize 3G for best 3D performance.
●Equipped with MX series high efficiency brushless motor, with heatsink style casing and embedded fan to dramatically improve cooling and increase power output.
●Unique fast release gyro and receiver mount design for fast removal and sturdy attachment.
●Uses high precision slant tooth (helical) main gear, with higher load sustainability and lower noise output.
●Brand new tail gear box with higher material quality and easy maintenance.
●High quality new tail gearbox design, combined with new dual point mounted tail pitch control assembly to minimize slops and increase rudder control precision.
●Highly efficient shaft driven tail system which effectively reduce power loss found on belt driven system, and at the same time increase performance during flight.
●Brand new 4mm carbon rudder control rod and metal rudder pitch bell crank to further improve the rudder locking effect and controllability.
●New style battery mounting platform to strengthen frame as well as provide mount for electronic speed controller.
●New style lower CG landing gear.
●Newly styled aerodynamically canopy for the ultimate fit, making the helicopter stand out.
●Best tail gear ratio to minimize vibration caused by high speed operation of main blades, bringing the best tail locking power.
●High quality new tail gearbox design, combined with new dual point mounted tail pitch control assembly to minimize slops and increase rudder control precision.


Users must have a certain concept of security to operate the R/C helicopters.
Be sure to read and comply with related safety notes of instruction manual before flying.

● Length: 868mm
● Height: 275mm
● Main Blade Length: 425mm
● Main Rotor Diameter: 978mm
● Tail Rotor Diameter: 206mm
● Motor Drive Gear:12T
● Main Drive Gear:134T
● Autorotation Tail Drive Gear: 145T
● Tail Drive Gear: 36T
● Drive Gear Ratio: 1:11.17:4.03
● Weight(With Motor): 1210g
Accessories:

●T-REX 500PRO DFC Kits Set X1
●425 3G Carbon fiber blades X1
●500MX Brushless Motor(1600KV) X1
●DS515M Digital servo X3
●DS525M Digital servo X1
●RCE-BL70G Brushless ESC X1


Radio transmitter and electronic equipment required for assembly:
●Transmitter(7-channel or more, helicopter system)
●Receiver(7-channel or more)
●6S Li-Po 2600 ~ 4600mAh X2 (3300mAh suggestion)
●Digital Pitch Gauge
●3GX Flybarless System
