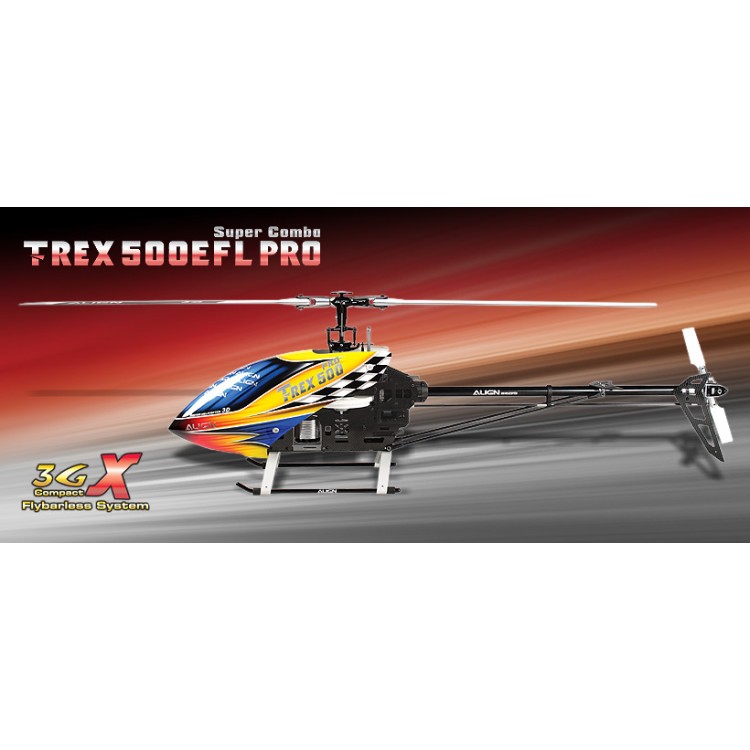

ALIGN T-REX 500EFL PRO Super Combo KX017016
  • ALIGN T-REX 500EFL PRO Super Combo KX017016
  • ALIGN T-REX 500EFL PRO Super Combo KX017016

  • SKU:24576
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 80
  • Price:$798.98
  • Price in reward points: 7990
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $783.00 $767.02 $743.05 $711.09 Contact US

ALIGN T-REX 500EFL PRO Super Combo KX017016

Product:
ALIGN T-REX 500EFL PRO Super Combo KX017016
Focus Shot1(Newly designed flybarless main rotor head assembly) Focus Shot2(Newly designed electronic equipments and ESC mount) Focus Shot3(High precision bearing mixing arms )
ALIGN T-REX 500EFL PRO Super Combo KX017016
ALIGN T-REX 500EFL PRO Super Combo KX017016
ALIGN T-REX 500EFL PRO Super Combo KX017016
Focus Shot4(Unique carbon composite technology which effectively strengthen the weak areas and simplify electronics installation ) Focus Shot5(Newly Metal Anti Rotation Bracket) Focus Shot6(Newly designed Gyro and Receiver mount)
ALIGN T-REX 500EFL PRO Super Combo KX017016
ALIGN T-REX 500EFL PRO Super Combo KX017016
ALIGN T-REX 500EFL PRO Super Combo KX017016
Focus Shot7(Brand new carbon tail control pushrod assembly ) Focus Shot8(High efficiency shaft tail drive system ) Focus Shot9(Metal tail control arm with wearproof sleeve )
ALIGN T-REX 500EFL PRO Super Combo KX017016
ALIGN T-REX 500EFL PRO Super Combo KX017016
ALIGN T-REX 500EFL PRO Super Combo KX017016
Focus Shot10(Newly styled aerodynamically canopy ) Focus Shot11(500MX Brushless Motor ) Focus Shot12(425D 3G carbon fiber blades )
ALIGN T-REX 500EFL PRO Super Combo KX017016
ALIGN T-REX 500EFL PRO Super Combo KX017016
ALIGN T-REX 500EFL PRO Super Combo KX017016
Focus Shot13(DS510M standard servo ) Focus Shot14(DS520 standard servo and RCE-BL70G Brushless ESC) Focus Shot15(3GX flybarless system)
ALIGN T-REX 500EFL PRO Super Combo KX017016 ALIGN T-REX 500EFL PRO Super Combo KX017016 ALIGN T-REX 500EFL PRO Super Combo KX017016
ALIGN T-REX 500EFL PRO Super Combo KX017016
ALIGN T-REX 500EFL PRO Super Combo KX017016
Instruction(3GX Programmable Flybarless System) : Specification(3GX Programmable Flybarless System) :

●Brand new redesigned 3GX represents a new generation of multi function flybarless system. The dramatically improved performance will create immediate impact on any enthusiasts.
●3GX is currently the smallest and lightest flybarless system on the market. Two ports to directly connect Spektrum and JR satellite receivers, along with full support of Futaba's S-BUS system.
●Based on the 3G FL760 manual setup process, the 3GX can be setup in a few minutes through a simple process. In addition, the 3GX can support all of the CCPM swashplate system currently on the market including 90, 120, 135, and 140 degrees swashplates.
●Graphical illustrated instruction on the computer setup software directs the user through a step by step setup process, allowing for quick setups without omitting any steps.
●Support Bluetooth connectivity. With the soon to be released Bluetooth connectivity kit, 3GX can be programmed wirelessly from a PC. Eventually there will also be smartphone apps allowing live adjustments to 3GX without powering down.
●With 3GX's built in Align RCE-G600 governor function, no external governor is needed to reduce electronic wire clutters.
●A library of pre-configured 3GX settings specifically available for T-Rex series of helicopters, allowing pilots to achieve the most optimal setup for their helicopters.
●Three levels of flight mode is available on the 3GX to provide different feels from beginners to advanced pilots.
●Custom parameters have been opened up in 3GX to allow pilots to fine tune numerous settings for swashplate and rudder. Settings export feature allows custom settings to be shared amongst friends.
●3GX utilizes brand new gyroscope sensors of the highest specifications when compared to other flybarless systems currently on the market, allowing it to be used under harsh conditions. Dual axis plus rudder sensor dramatically improves swashplate and rudder correction precision compared to last generation 3G. This is clearly noticeable in stable hover as well as highly aerobatic routines.
●Suitable for helicopter of all class from 200 to 700, glow engine or electric powered. The superior vibration resistant characteristic is evident even when mounted with harder double sided mounting tape.
●3GX utilizes 16 bit processor which is 4 times faster than previous generation, along with a completely re-written firmware. The result is a dramatic stability improvement from previous generation, with stability that rivals a flybarred helicopter, yet posses explosive agility.
●With built in pirouette compensation function, 3GX is able to stabilize the helicopter on a fixed point during pirouetting maneuvers. Pirouetting flips type of maneuvers are easily accomplished with precision.
●3GX's rudder control is similar to the high end GP-780 gyro in that rudder sensitivity is catered specifically for the helicopter's rudder response characteristics, allowing consistent rudder feel even under high speed conditions. This excellent control feel will allow pilot of all skill levels to experience the perfect integration between 3GX and helicopter.
●Additional peripherals planned for the 3GX includes 3-axis accelerometer, 3-axis magnetic compass, and GPS positioning system. While the commonly available position hold gyro system utilizes only 6 sensors, 3GX’s total of 10 sensors ensure positioning of helicopter with superior accuracy, providing the ultimate solution for aerial photography or other special purposes.

Specification(T-REX 500EFL PRO Super Combo) :

●Preface
1.Following the design and manufacturing excellence of Align, T-Rex 500E Pro is a new generation of 500 class helicopter with exclusive innovations.
2.Main rotor housing with integrated washout base for lower CG and aerodynamically efficient, improving 3D performance. Composite technology is used throughout the side frames which cleverly strengthen the weak areas, and eliminated servo mounting nuts to simplify maintenance at the same time. Removable gyro mounting platform and receiver mount are more rigid and ergonomically friendly. Rudder servo is mounted inside the frame for more central CG point to improve 3D performance, as well as minimize crash damage to the servo. Superior quality tail gear box, thicker stronger side plates around tail drive crown gear. Newly designed dual bearinged tail blade grips for zero slop rudder control precision and ultimate tail locking performance. At the heart of the helicopter, the high efficiency Align MX series motor provide continuous power.
3.T-Rex 500E Pro features high stability, excellent gust resistance, superior control feel, and being 500 is just the right size/price, it is the ultimate choice for enthusiasts.

●Features
1.Main rotor housing with integrated washout base for lower CG and aerodynamically efficient, improving 3D performance.
2.Unique carbon composite technology which effectively strengthen the weak areas and simplify electronics installation.
3.Servos can be mounted directly onto frame without mounting nuts.
4.Rear in-frame rudder servo mount design for centralize 3G for best 3D performance.
5.Equipped with MX series high efficiency brushless motor, with heatsink style casing and embedded fan to dramatically improve cooling and increase power output.
6.Unique fast release gyro and receiver mount design for fast removal and sturdy attachment.
7.Uses high precision slant tooth (helical) main gear, with higher load sustainability and lower noise output.
8.Brand new tail gear box with higher material quality and easy maintenance.
9.Newly designed dual bearinged tail blade grips for zero slop rudder control precision and ultimate tail locking performance.
10.Highly efficient shaft driven tail system which effectively reduce power loss found on belt driven system, and at the same time increase performance during flight.
11.Brand new 4mm carbon rudder control rod and metal rudder pitch bell crank to further improve the rudder locking effect and controllability.
12.New style battery mounting platform to strengthen frame as well as provide mount for electronic speed controller.
13.New style lower CG landing gear.
14.Newly styled aerodynamically canopy for the ultimate fit, making the helicopter stand out.

Users must have a certain concept of security to operate the R/C helicopters.
Be sure to read and comply with related safety notes of instruction manual before flying.

●Operating Temperature:-10~60 degree
●X and Y axis Operating Angle Range:-300~+300 degree
●Z axis Operating Angle Range:-600~+600 degree
●Size:36.5x25.2x15.6 mm Size
●Weight11g Weight
●Supports Wide/Narrow Bandwidth Digital and brushless servos
●Spektrum and JR Satellite antennas support (Replaces original factory receiver)
●Futaba S.BUS system support
●Built in governor function
●Maximum working voltage:8.5V
●Compatible with 1024/2048 resolution Spektrum receivers
●Supports 90/120/135/140 CCPM swashplates
●Field setup without the use of a PC
●Compatible with 2 to 5 blades rotor heads
●Support up to 6 servos
●Automatic servo type recognization
Specification(T-REX 500EFL PRO Super Combo) :
● Length: 868mm
● Height: 300mm
● Width: 161mm
● Main Blade Length: 425mm
● Main Rotor Diameter: 978mm
● Tail Rotor Diameter: 206mm
● Motor Drive Gear:12T
● Main Drive Gear:134T
● Autorotation Tail Drive Gear: 145T
● Tail Drive Gear: 36T
● Drive Gear Ratio: 1:11.17:4.03
● Weight(With Motor): 1210g


Accessories:

●T-REX 500EFL PRO Kits Set X1
●Aluminum Tail Boom X1
●425D 3G Carbon fiber blades X1
●500MX Brushless Motor(1600KV) X1
●DS510M Digital servoX3
●DS520 Digital servo X1
●3GX Flybarless System X1
●RCE-BL70G Brushless ESC X1


Radio transmitter and electronic equipment required for assembly:
●Transmitter(7-channel or more, helicopter system)
●Receiver(7-channel or more)
●6S Li-Po 2600 ~ 3300mAh
●Dial Pitch Gauge
