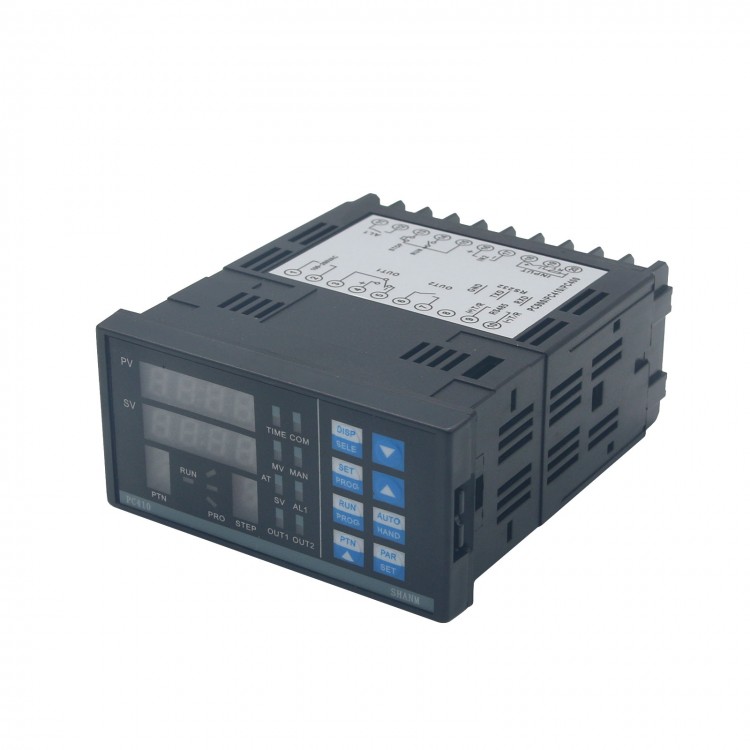

ALTEC PC410 Temperature Controller Panel BGA Rework Station RS232 Communication

Availability: In stock, usually dispatched in 1 business day

  • Price:$65.13
  • Price in reward points: 651 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $63.83 $62.52 $60.57 $57.97 Contact US
Quantity:

ALTEC PC410 Temperature Controller Panel BGA Rework Station RS232 Communication

Description:
- PC410 Series instruments with 10 * 8-segment temperature curve , segmented output power limit and time of the event output, especially suitable for the required number of laboratory furnace temperature curve or environmental laboratory equipment and other occasions , the use of advanced PID control algorithm and PID self-tuning function, with no overshoot and undershoot without good control characteristics.

PC410 technical parameters :
- Accuracy: full scale ± 0.2% FS +1 digit numbers
- Sampling period: 125 ms
- Input: Thermocouple : J, K, E, R, S, T, B, N
- RTD : Pt100, Cu50
- Linear input : 0 ~ 20mA, 4 ~ 20mA, -10.0 ~ 50.0mV, 0 ~ 10V
- Output: relay, normally open contact (max.250VAC, 3A)
- Logic level , 20V/20mA, can trigger high- SSR
- Analog , 0 ~ 10mA, 4 ~ 20mA, 0 ~ 20mA or 0 ~ 5V, 1 ~ 5V, 0 ~ 10V
- Single- phase thyristor zero-crossing output power can be triggered unidirectional , bidirectional thyristor
- Three-phase thyristor zero output , can trigger power unidirectional, bidirectional thyristor
- Single- phase thyristor phase output power can be triggered unidirectional , bidirectional thyristor
- Three-phase thyristor phase output power can be triggered unidirectional , bidirectional thyristor
- Alarm : relay, normally open contact (max.250VAC, 3A)

Alarm , upper and lower limit alarm, deviation alarm
Curve Control: curve length: 8 procedure
The number of curves: 10
:1 -200 program cycle or continuous
Regulation algorithm : switching regulator (on / off)
Proportional, integral , differential regulation (PID), PID self-tuning
Digital Communications : RS-232 (3 lines ), RS-485 (2 -wire)
Power supply : Voltage Range : 85 ~ 264VAC, 45/60Hz
Environment: Operating Temperature : 0 ~ 50°c , relative humidity ≤ 8

Package includes:
- 1 x ALTEC PC410 Temperature Controller Panel
