Aluminum 2-axis BGC Brushless Camera Gimbal PTZ w/ Controller and Motor Black for GoPro3

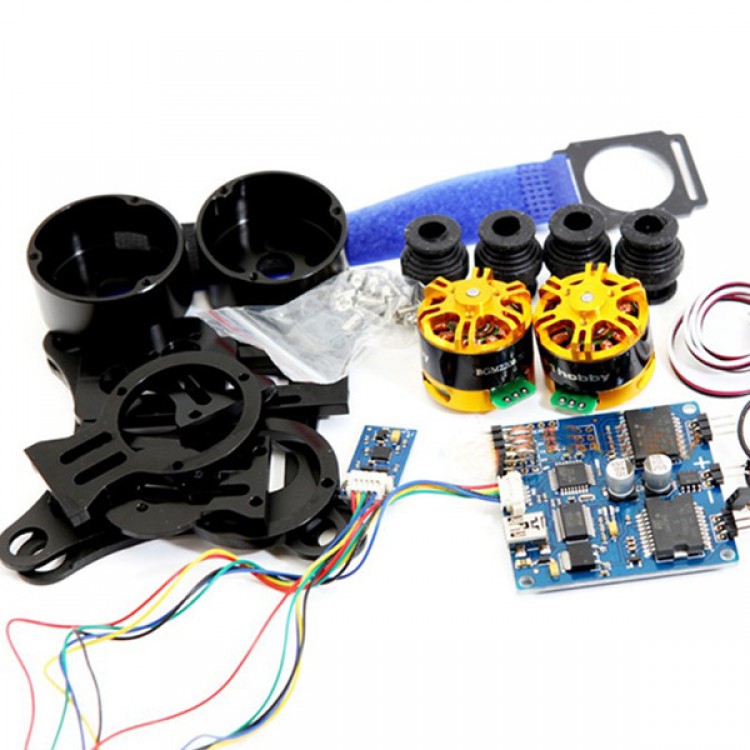

Products include : ( taken in kind, consistent picture ! )
1: CNC aluminum rack * 1
2: Gopro3   tie *1
3: AV damping Ball* 4
4: Install screw*1  ( by default more than one spare screw attention to firmly fight plastic screws installed )
5 : BGC  *1 ( the default program for the German V049 professional players can modify their own )
6: 2208 70T  motor * 2
All parts Weight: 220 g / 220g

Players need to :
This product includes all the accessories.
 players  need  to assemble their own parts and install the controller software debugging. Picture exactly the same!

Reference :

his gimbal controller supported 2-Axis brushless motors and is adjustable, so it can be balanced for camera perfectly.
The original version Brushless Gimbal Controller by Ludwig Färber (Hardware and Software) , Alexander Rehfeldt (Software) and Christian Winkler (Software).
This is an Open Source Project. We add a MOSFET for reverse polarity protection and a status blue LED for status indication.
When you running original firmware (e.g. 049) the LED will show you the startup status.

Hardware Features:
- 2-Axis output supported
- ATMega328P microcontroller
- Onboard FT232RL USB-TTL converter
- Input reverse polarity protection
- 2~6 cells lipo input
- 3 Channels input
- Power and status LED
- Multiport
- UART Port
- MPU6050 6 axis gyro/accel with Motion Processing Unit (IMU board)
- On board logic level converter (IMU board)
- 3.3V/500mA LDO voltage regulator (IMU board)
- Dimension: 50mmx50mm
- Height: 11mm
- 45x45mm mounting holes
- Weight: 27g (include IMU board)

Cable Description:
- German version of the firmware:
- Input: A1 is PITCH (pitch) control, A2 is ROLL (roll) control
- Back screen "PITCH" position represents the pitch axis output, "ROLL" position shows a cross-roller output
- IMU board mounting direction: underside (flat) up, x /-x-axis pointing to the front and rear head direction, y /-y axis pointing to the side of the head
-  Russian version of the firmware:
- Input: A0 is PITCH (pitch) control, A1 is ROLL (roll) control
- Back screen "PITCH" position represents the pitch axis output, "ROLL" position shows a cross-roller output
- IMU board mounting direction: IC side up (the plane down), y /-y axis pointing to the front and rear head direction, x /-x-axis pointing to the side of the head

Size:
- The main control panel: 50 × 50mm Fixed Pitch: 45mm aperture: 3.1mm
- IMU board: 13 × 26mm
