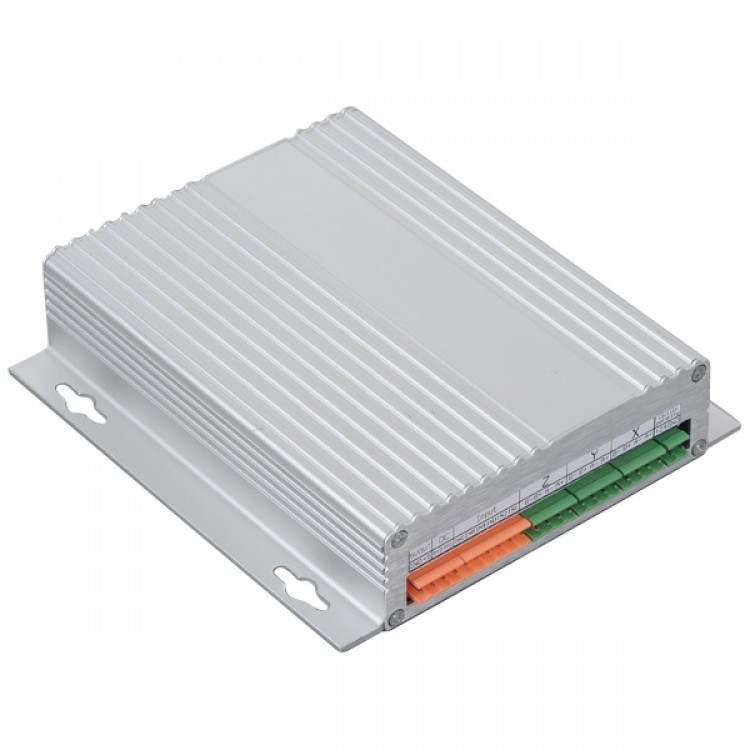

• Aluminum Box CNC Router 3 Axis 3.5A TB6560 Stepper Motor Driver Board Controller

Aluminum Box CNC Router 3 Axis 3.5A TB6560 Stepper Motor Driver Board Controller

Availability: In stock, usually dispatched in 1 business day

  • Price:$62.30
  • Price in reward points: 623 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $61.05 $59.81 $57.94 $55.45 Contact US
Quantity:

Aluminum Box CNC Router 3 Axis 3.5A TB6560 Stepper Motor Driver Board Controller

Features:

1. Very easy to use, all of use are marked on the board
2. Use the new chips imported Toshiba TB6560AHQ
3. With large aluminum heat sink housing to ensure good heat dissipation
4. Input signal high-speed optocoupler isolation, guarantee not losing steps
5. With automatic semi-flow feature, and adjustable semi-flow mode, semi-flow of current is also adjustable, with multiple semi-flow model and semi-flow current setting function
6. Attenuation model adjusted for all the motors can be locked when no noise
Rated Voltage: DC 12V-36V
Maximum current: 3.5A
Adjustable operating current (Current):
Operating current can be set to a variety of modes, relative to the actual operation of the maximum current can be set to the maximum current the current 20%, 50%, 75%, 100%
Subdivision adjustable (Mode):
1,2,8,16
Attenuation adjustable (Decay):
0 %---- no decay mode
--- 25% of the slow decay mode
--- 50% of the normal mode
100% - Fast Decay mode
----- Decay mode of regulation by different motors to match impedance, thereby eliminating the noise when locked stepper motor and motor movement in the shake.
Automatic half current setting (Torque Settings):
%---- No pulse when the current 20 to normal operating current of 20%
50 %---- no pulse current 50% to normal operating current
75 %---- no pulse current 75% to normal operating current
100% --- no pulse when the current 100% to normal operating current
For S1, S2, S3, S4 of the adjustment will lock the motor running current size and current size of the matching options to do with auto half current function, half the current size of the adjustable flow can be well compatible with different applications

Package includes:

1 * Aluminum Box 3 Axis 3.5A stepper motor driver

1 * DB25 parallel cable

6 * Wire connectors
