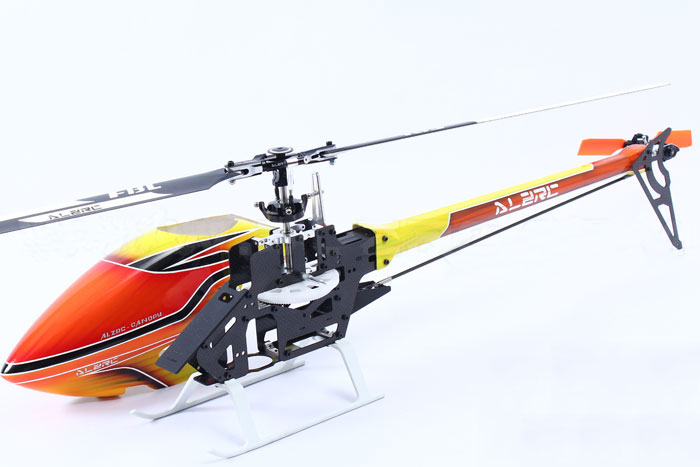

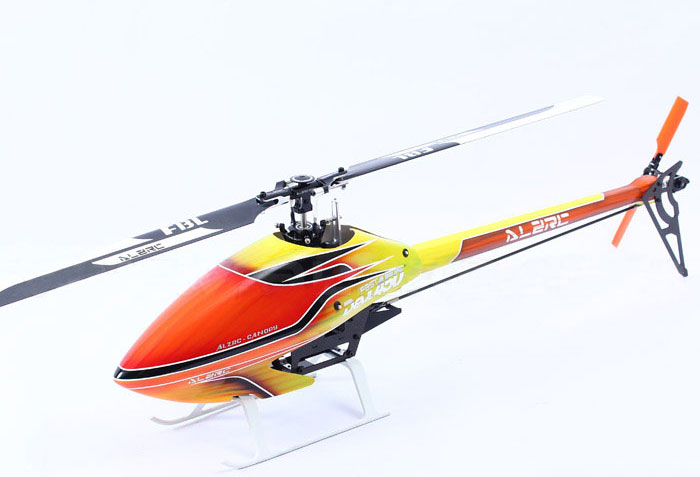

The upgrade version of the T-Rex 450 PRO V2 heli kit! Comes with SDC/DFC FBL head, helical gear and high quality Goblin-style fuselage!

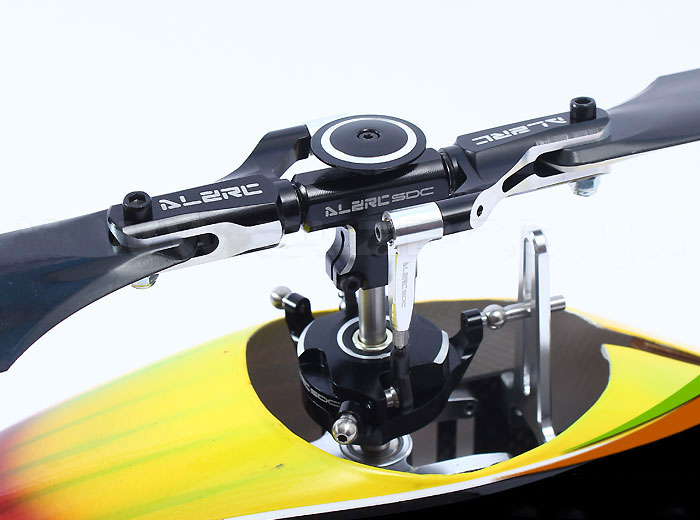

SDC (DFC) Main Rotor Features:

1.Extreme low CG and short main shaft design, dramatically reduces flight resistance, effectively improves Devil450’s 3D performance and speed.
2.New style linkage rod design, complete assembly increases linkage rod rigidity, allowing the pitch slider (follower) to be omitted, resulting in a head assembly that is much simplified and rigid.

Features:

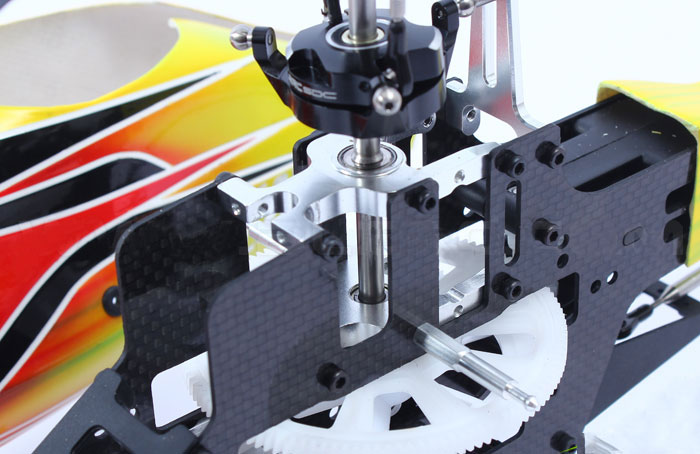

1.Newly improved low wind resistance specialized flybarless rotor head assembly, with reduced distance between rotor head and frame, effectively lowering the CG for better 3D performance.

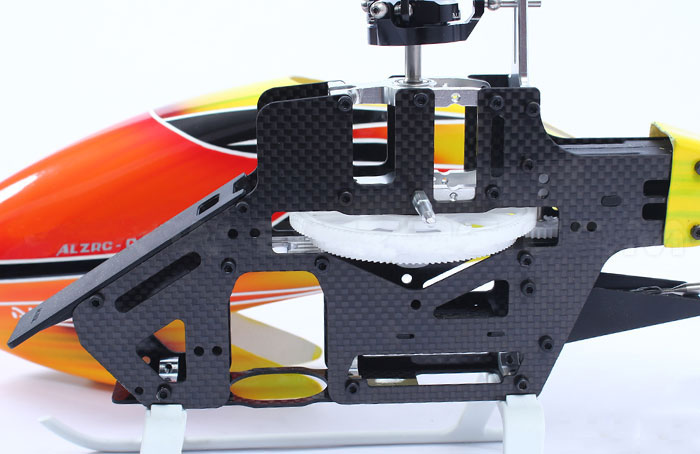

2.Improved side frame design, with dedicated 3GX mounting location. Gyro can be placed in between frames, or behind anti-rotation guide, resulting in clean wire management and improved aesthetics.
3.Unibody main shaft and servo mount, with modified side frame connecting points, simplifying servo replacement and improving ease of maintenance.
4.Longer battery mounting plate with integrated ESC mount. Not only is the battery mount more rigid, the battery can be shifted based on its dimension for better CG. In addition, the screw count has been reduced to minimize assembly and maintenance time.
5.High efficiency tail shaft drive design, dramatically reduce power loss associated with belt driven system, and at the same time increase power output.
6.Vertical rudder servo mount design moving the CG closer to center, improving agility during 3D maneuvers.

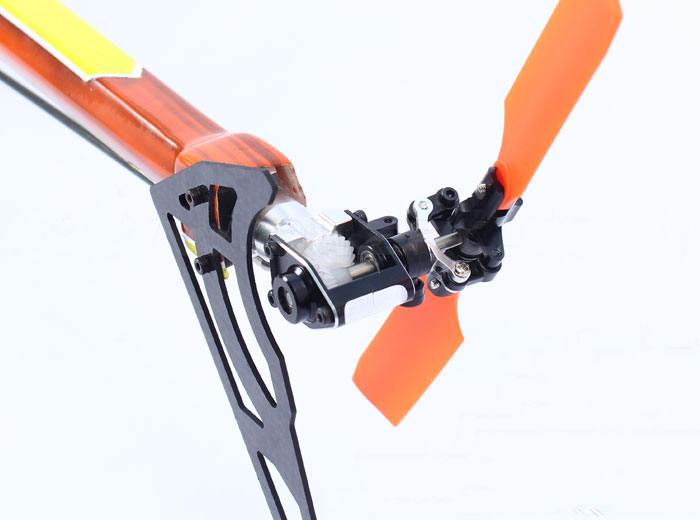

7.Unique opposing weighted tail blade grips effectively increase rudder and gyro performance, for superior tail locking and higher precision.

Specification:

Length: 635mm Height:  230mm
Main Rotor Diameter: 710mm Tail Rotor Diameter:   158mm
Motor Drive Gear: 12T (helical) Main Drive Gear: 121T (slant thread)
Autorotation Tail Drive Gear: 106T Tail Drive Gear: 25T
Drive Gear Ratio:  1:10:4.24 Weight(w/o power system): 530g
Flying Weight:  Approx. 640g

Content

1.ALZRC Devil 450 FAST Flybarless Frame Kit x 1 set
2.ALZRC SDC Main Rotor Head x 1 set
3.ALZRC Devil 450 FAST Fuselage x 1 set
4.325 FBL CarbonFibre Blades x 1 pair

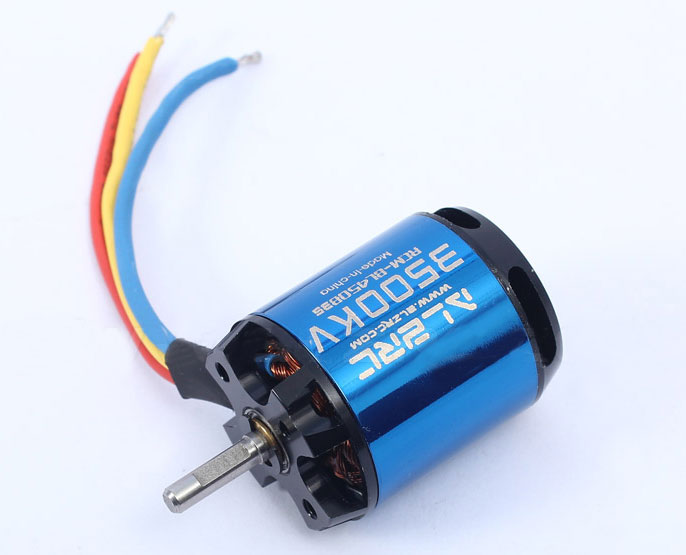

5.ALZRC 3500KV Brusless Motor (RCM-BL450B35) x 1

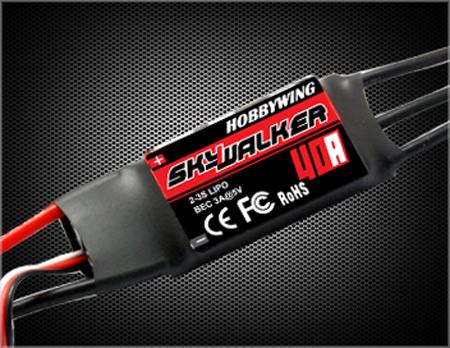

6.HobbyWing SkyWalker 2S-3S 40A Brusless ESC x 1
