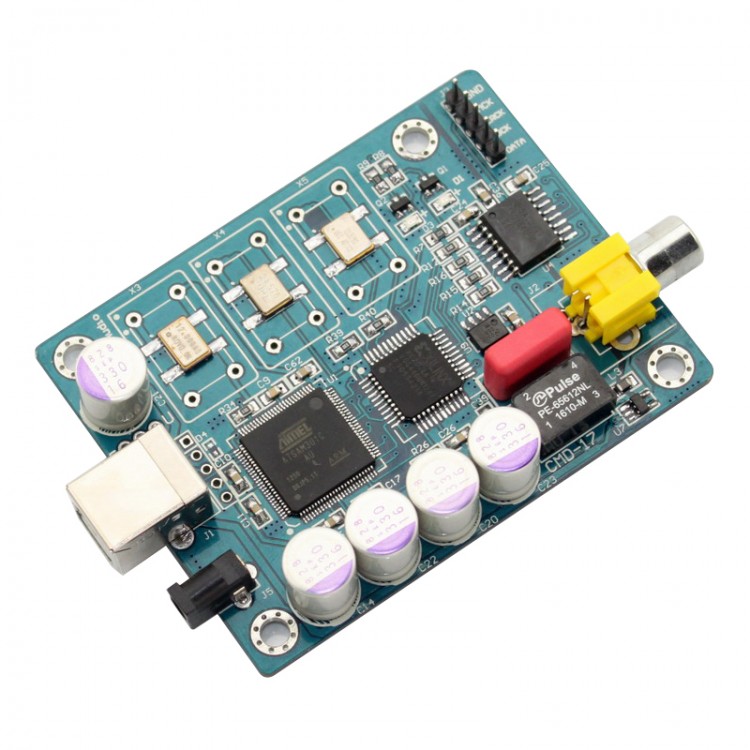

Amanero USB IIS Digital Interface ATSAM3U1C + XC2C64A + WM8805 Coaxial I2S DSD Output Audio Amplifier

Availability: In stock, usually dispatched in 1 business day

  • Price:$40.92
  • Price in reward points: 409 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $40.10 $39.28 $38.06 $36.42 Contact US
Quantity:

Amanero USB IIS Digital Interface ATSAM3U1C + XC2C64A + WM8805 Coaxial I2S DSD Output Audio Amplifier

Description:
- Technical indicators: DSD512, DXD 384k. Amanero support DSD Native (source code) and DoP dual mode.
- Size 78x60mm
- The card supports I2S output (DSD format can also)
- Supported Sample Rates: 44.1Khz 48Khz 88.2Khz 96Khz 176.4Khz 192Khz 352.8Khz 384Khz
- Output Format: I2S 32bit or DSD64, DSD128 - On Windows DSD256, DSD512 too
- Oscillators: 2 Low Phase Noise TCXO
- Dimension: 30x69mm

Note:
- DSD output enable line to signal an incoming DSD stream. Card supports output mode only.
- NO Drivers needed for Mac OSX 10.6+ and Linux with UAC2 compliant kernel.
- KS / Wasapi / WDM / ASIO Drivers for MS OS XP to Win8 32-64bit included at no fee.

Upon Request:
- The user can provide a custom USB VID-PID, a custom Device Name and a custom CodeSign
- Certificate for WDM drivers. For old applications the max sample rate can be configured to 192Khz

Specifications:
- DSD512, DXD 384k. Amanero supports DSD Native and DoP dual mode.
- DSD Native with ASIO can support the highest audio specifications, no need for DoP

Package includes:
- 1* Board
