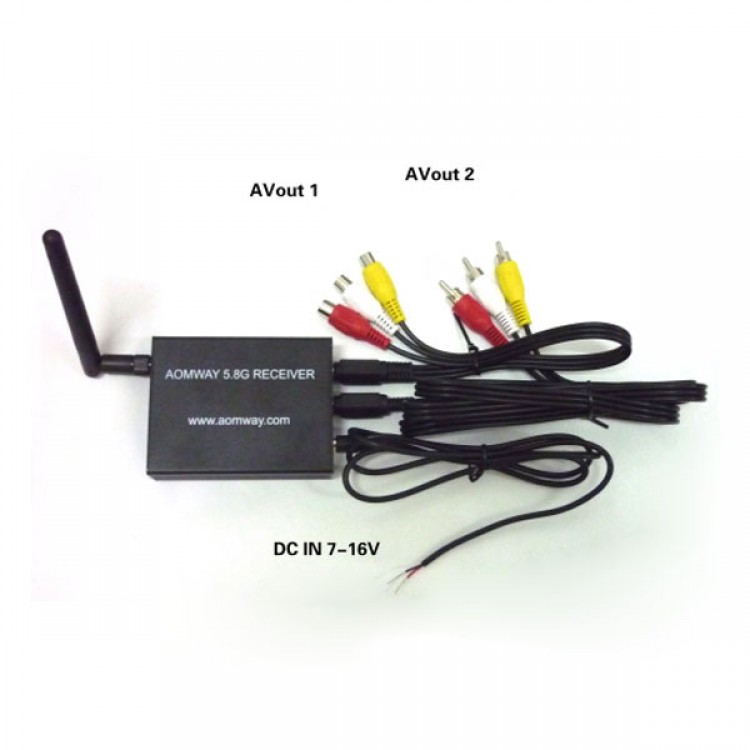

AOMWAY FPV 5.8G 500mw Receiver RX VTR 15CH Telemetry Fatshark ImmersionRC Compatible
Descriptions:
- This is the first 5.8G solution support both the Fatshark/ImmersionRC(airwave/NexwaveRF) 7-channel and Chinese-brand 8-channel.
- The latest 500mw version with improved power solution and support 5V and 12V(same as input voltage) output cameras now
Specatations:(this listing only for receiver only,TX mot included)
- Frequency: 5.8G wide-band FM video/audio tx (SKU:24043 and 24045 all contains TX)
- Power: 500MW/26.5dBm
- Channels: 2 modes:5740-5860MHz(7-channel)/5705-5925MHz(8channel)
- 15 channels total
- Weight: 17g only
- PAL/NTSC supported
- Sterieo audio: L/R audio channe;
- Input Voltage:7-16v
- Current: 220ma/12v
- antenna connector: SMA
The latest Rx with improved power solution and support wide range power input 6-16v, 2-4 cell lipo are supported.
- Weight: 17 grams without antenna
- Size: 43 x 24mm
- Input voltage range: 6 - 16 v
Receiver Specification:
- Weight:116g
- Size:80*60*20mm
- Input Voltage: 7V-16V
- Dual frequency:5740-5860MHz for Fatshark / 5705-5945MHz Universal
- 15 Channels:CH-1 7channel / CH-2 8channel
- Audio: dual channel stereo output
- AV video output: 2 AV output
Content of the package:
- 1 x 5.8G Receiver
- 1 x Connector and cable set
