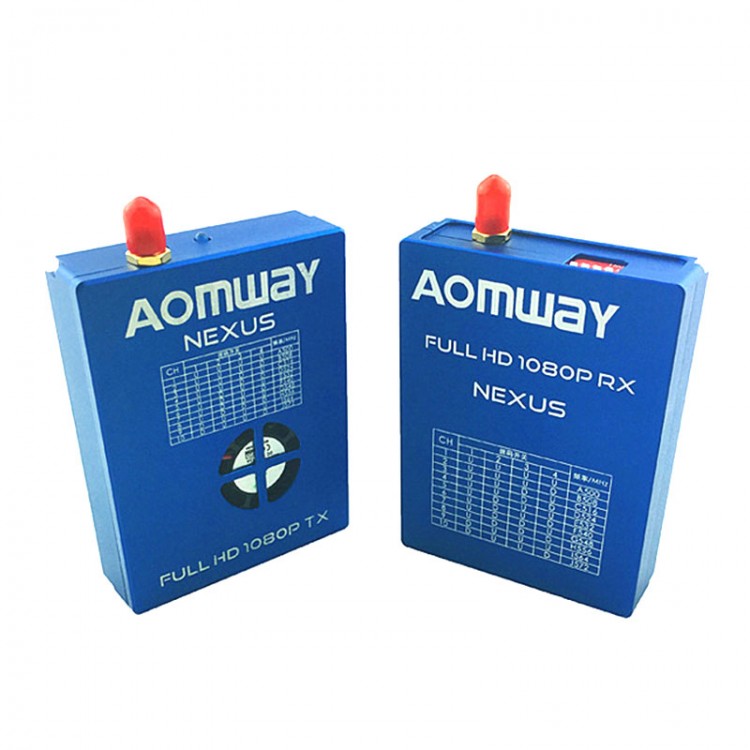

AOMWAY Nexus Digital Transmitter Receiver 1080P FULL HD TX RX for FPV Quadcopter Drone

Product Description

Nexus is the latest Full HD wireless digital video transmission system, it adopts high efficient encoding algorithm which ensures low latency and low bit error rate while data transmission thus the video quality and stability have been largely increased.

Transmitter Specifications:
- Operating Mode: low frequencies at medium power level
- Working voltage: DC10-17V(Lipo 3-4S battery)
- Antenna connector: SMA-J (50 Ω)
- High definition media interface:1080p @ 30fps, 720p@ 60fps, A-type connector
- Max power: 9W/+39.6dBm
- Operating Temperature: 0-80°C
- Bandwidth:8MHz
- Channel: 10CH selectable
- LED Indicator:red light on for power;blue light on for signal connection
- Inner cooling fan: 2507 high speed mini fan

Receiver Specifications:
- Working voltage: DC7-24V
- Antenna connector: SMA-J (50Ohm)
- High definition media interface: 1080p @ 30fps, 720p@ 60fps, A-type connector
- Power consumption: <4W
- Operating Temperature: 0-60°C
- Bandwidth:8MHz
- Channel: 10CH selectable (same as transmitter)
- Latency: 80ms (does not count camera & monitor part)
- LED Indicator:red light is on for power;blue light flashing, receiver starts to search signal;when signal connection is good, blue light is solid on; when disconnected , blue light goes off.
- Sensitivity: -82dBm (64QAM, 8M/FFT:8K, GI:1/32, CR:7/8)

Package Included:
- 1 x Transmitter
- 1 x Receiver
