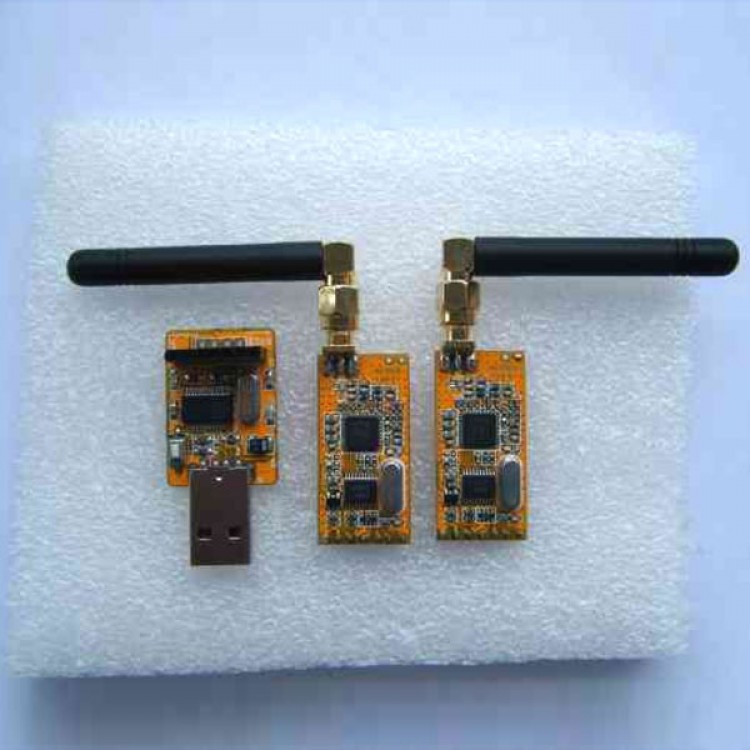

APC220-43 Transparent Transceiver Module Communication Module with UART/TTL Interface

APC220-43 Transparent Transceiver Module Communication Module with UART/TTL Interface
Description:
    APC220-43 is highly integrated semi-duplex low power transceiver module with high speed MCU and high capability RF IC。Using high efficiency forward error correction with Interleaving encoding technology , it can make anti-interference and sensitivity improved highly. It can have a good performance in strong interference circumstance as well, for example the industry field。The technique is advanced in data transfers area.
  APC220-43 is a cost-effective and easy applied module that not only can transmit transparent data with large data buffer zone,but also can provide more than 100 channels . It 's parameters easily setting and small size make the module an ideal for wireless data transfer application.

Specfications:
- 1000 meters of communication distance（2400bps）
- Output power is 20 mW
-  Frequency is from 418MHz to 455MHz
-  Size of Module 37.5mm x 18.3mm x 7.0mm
-  More than 100 channels
-  GFSK modulation
-  UART/TTL interface
-  Exceed 256 bytes data buffer
-  fit to large data transfers
-  The convenient software for setting

Application:
-  Automated Meter Reading (AMR)
-  Wireless sensor
-  Industrial Automation
-  The control of traffic signal
-  Wireless handheld terminal
-  Remote control and monitoring
-  The management of cars
-  Wire Replacement
-  Oil and Gas Detection.
-  The control of robot

Download English Manual: Click Here
