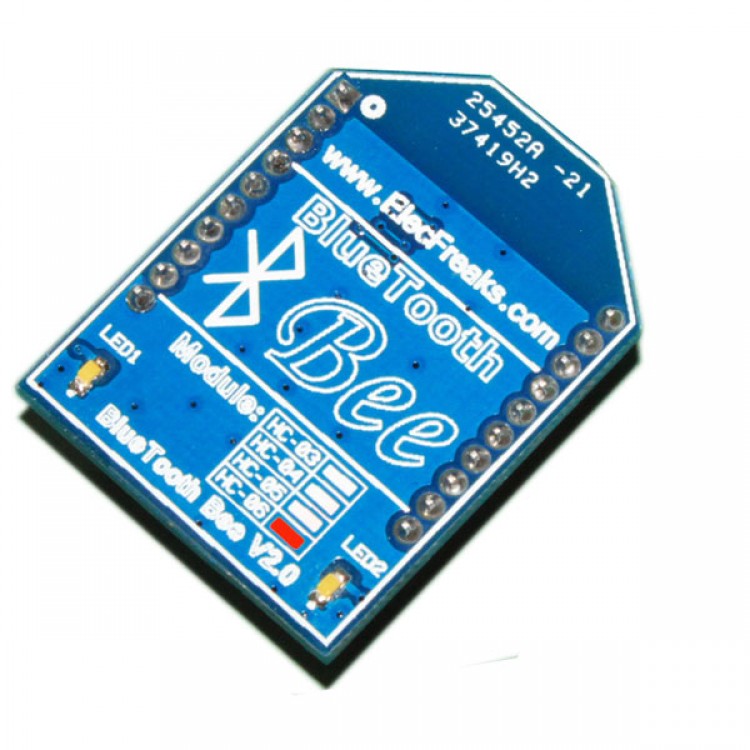

Arduino Bluetooh Bee Wireless Bluetooth Module Slave Mode

Descriptions:
- Bluetooth Bee is an easy to use Bluetooth SPP module compatible with existing Xbee sockets, designed for transparent wireless serial connection setup.
- Bluetooth Bee is designed for transparent wireless serial connection setup. This is a fully qualified Bluetooth V2.0+EDR (Enhanced Data Rate) 3Mbps modulation with complete 2.4GHz radio transceiver. It uses CSR Bluecore4-external single chip Bluetooth system with CMOS technology and with AFH (Adaptive Frequency Hopping).
- It can be configured to Master, Slave or Loopback three different modes(HC-06 just be Slave), and it will connect to or be connected by other devices that support SPP protocol per configuration, and it is a suitable substitute for most

applications.
- We recommend assemble with XBee Shield with logic level converter or Arduino XBee/Bluetooth Bee USB Adapter.
- The AT command reference to "AT command set(HC-06)"

Specifications:

Microprocessor

CSR BC417

PCB size

33.7mm * 25.2mm * 1.6mm

Indicators

PWR State

Power supply

3.3V DC

Communication Protocol

UART Bluetooth2.0

RoSH

Yes

Package included:
- 1 x Bluetooth bee module only
